Ducati Panigale V4/V2 AiM Solo 2 DL Plug & Play Cable

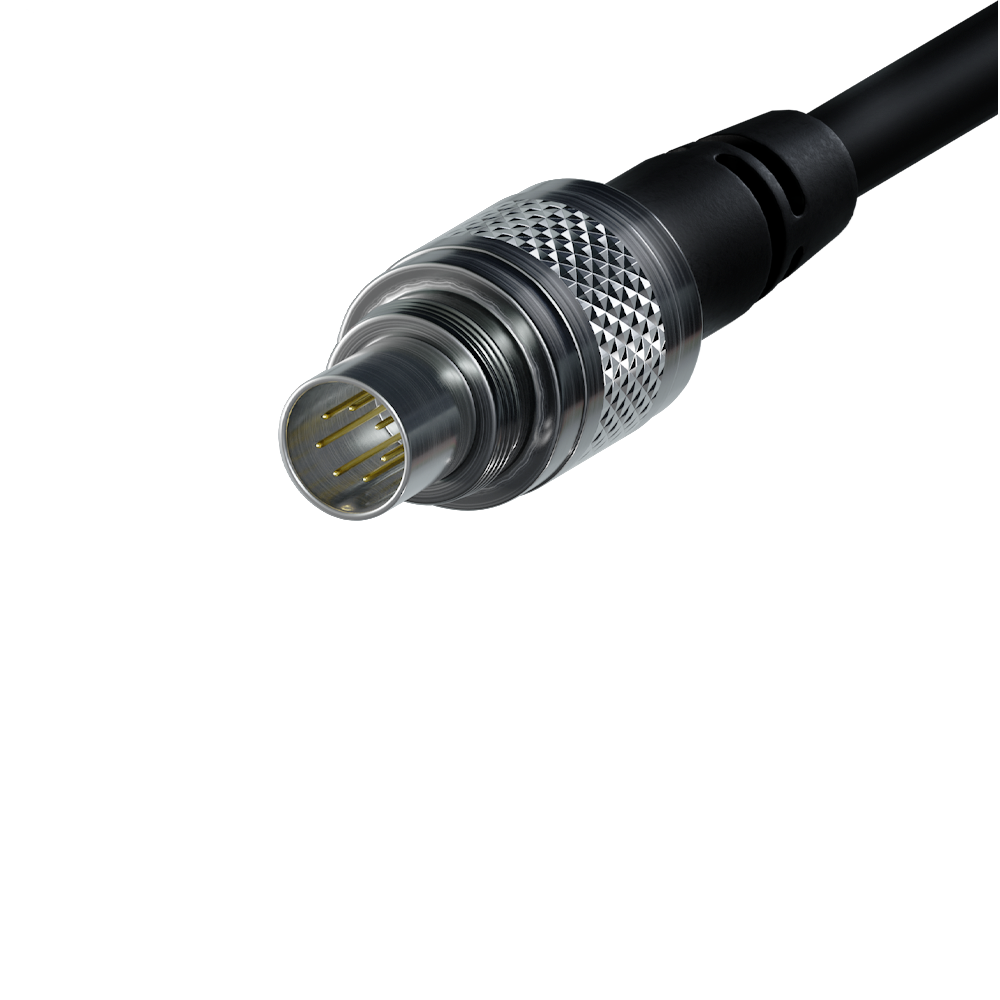

The AiM ECU plug & play cable has been specifically designed for Ducati Panigale V4/V2 bikes. Allowing easy installation to a Solo 2 DL. With a 7-pin 712 male binder connection.

Key Features :

Ducati Panigale V4/V2 Plug & Play ECU Cable

The AiM ECU plug & play cable has been specifically designed for the Ducati Panigale V4/V2 bike. This plug & play cable can be used for the Solo 2 DL.

The cable is an easy fitment to your bike and allows ECU data to be logged.

Please Note: If you are unsure this ECU cable will fit your bike, don't hesitate to contact one of our team. Either by email, phone or online chat.

Plug & Play

The plug & play cable currently fits the following Ducati Panigale bike models:

Panigale V4 - From 2018	Panigale V2 - From 2020

Example data protocols

Example data protocols sampled include RPM, Active gear, Vehicle speed, Front wheel speed, Rear wheel speed warning led, Engine coolant temperature, Brake pressure, Throttle position, Speed, ABS intervention, ALC intervention, Low fuel level, Traction control, Oil pressure, Map menu and many more. Refer to the technical sheet in the Downloads Tab for an extensive protocol list.

Please Note: For these models/years Aim recommends not to remove the stock dash. Doing so will disable some of the bike functions or safety controls.

Expand Your System

These are some of the items that can be added to your bike for incrementing performance and data.

Ducati Panigale V4/V2 AiM Solo 2 DL Plug & Play Cable

• Below is a pinout drawing for the Ducati Panigale V4/V2 plug & play connection cable

Ducati Panigale V4/V2 AiM Solo 2 DL Plug & Play Cable

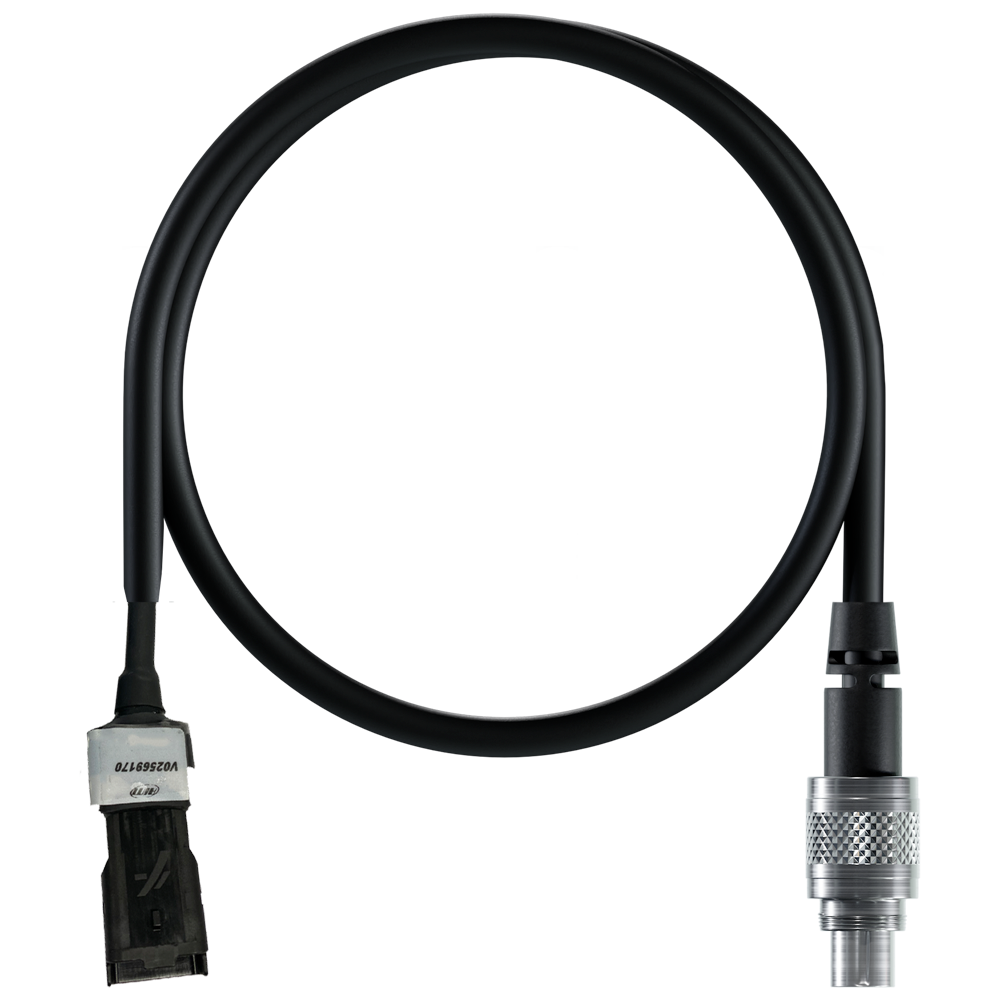

• Ducati Panigale V4/V2 Plug & Play connection cable
