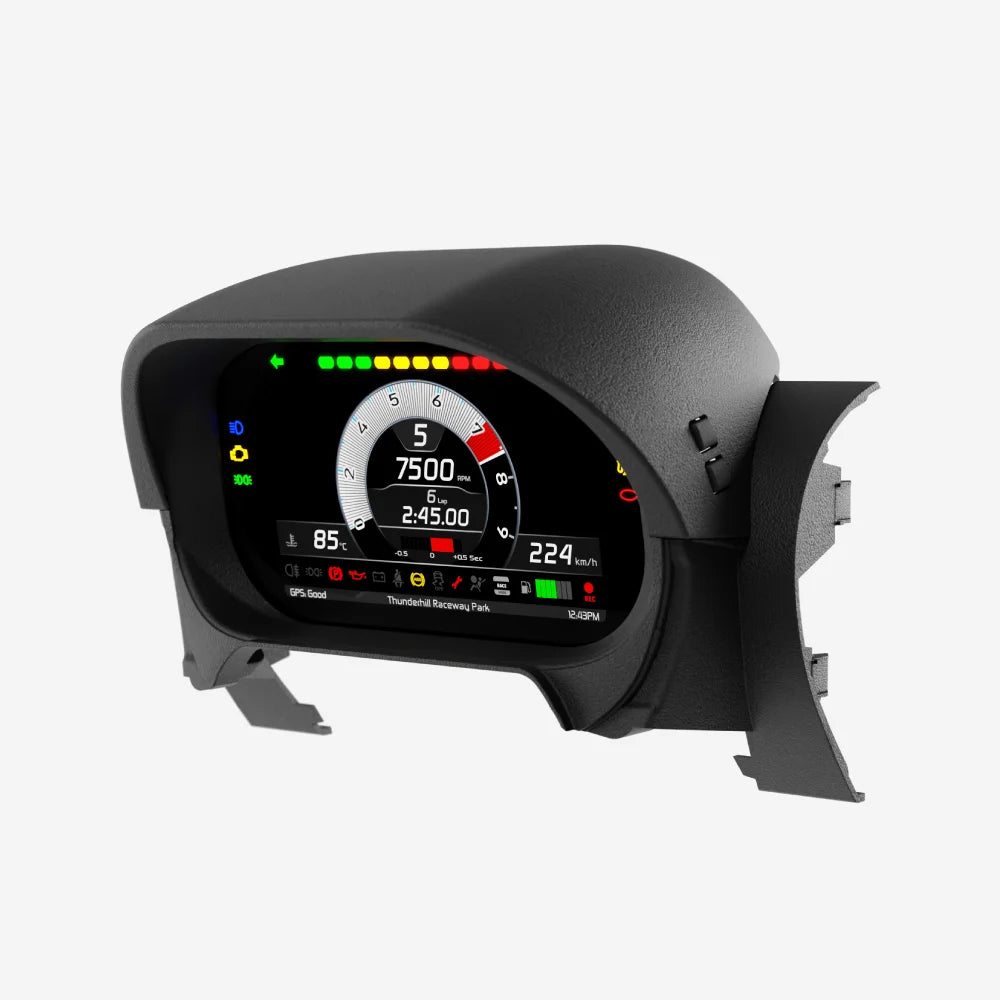

AiM MX2E Plug & Play Dash Logger Kit for Lotus Elise / Exige

SKU: MX2E

Regular price
£1,250.00
Regular price
Sale price
£1,250.00

Carbon-neutral shipping with Shopify Planet
Carbon-neutral shipping on all orders

Elevate Your Lotus Dash

The AiM MX2E provides a significant upgrade for Lotus Elise or Exige dashes, offering a seamless plug & play solution that provides real time data and enhanced functionality to transform your driving experience.

Key Features

6” high contrast TFT display Integrated GPS module
Exclusively Designed for Lotus dashes (2004-2020) 14 digital switch inputs
4 GB memory – enough for over 3000 hours of data Comprehensive data logging functionalities
Wifi connectivity CAN bus ECU interface
18 integrated LEDs Customisable display

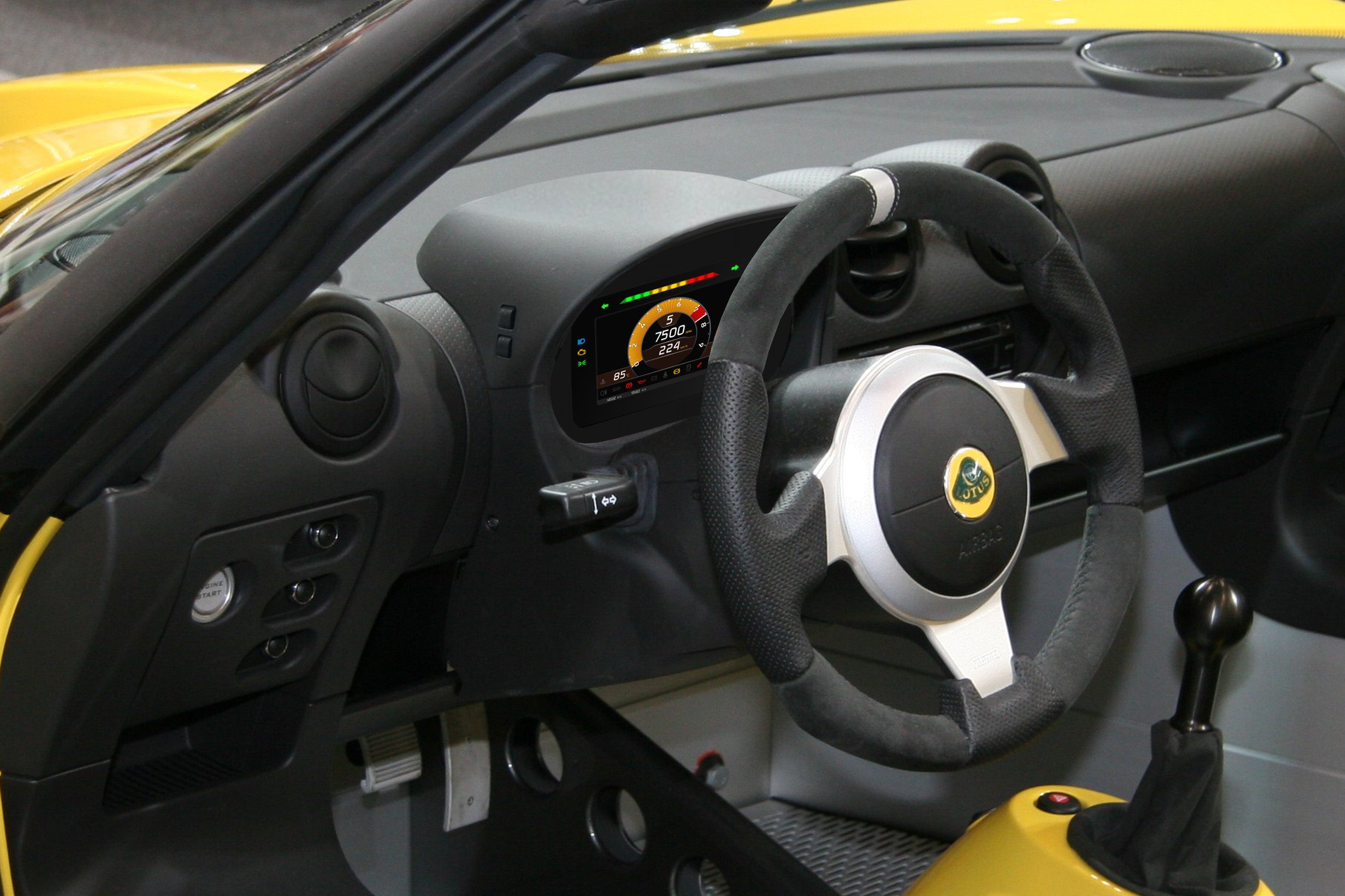

MX2E Lotus Dash

Why Upgrade Your Lotus Dash With The MX2E?

The AiM MX2E offers a comprehensive upgrade to your Lotus dash, combining modern aesthetics with advanced data logging capabilities. At the push of a button, your dash can be customised from daily driving to a track-day data logger. Whether you're on the track or the road, the MX2E provides everything you need to enhance your driving experience.


Advanced Data Acquisition

The MX2E gathers data from the vehicle's ECU, the integrated GPS module and any additional sensors and modules that have been inputted. This data is then displayed directly on the Lotus’s dash in real time, displaying key performance metrics like RPM, throttle position, temperatures, pressures, lap times and more.

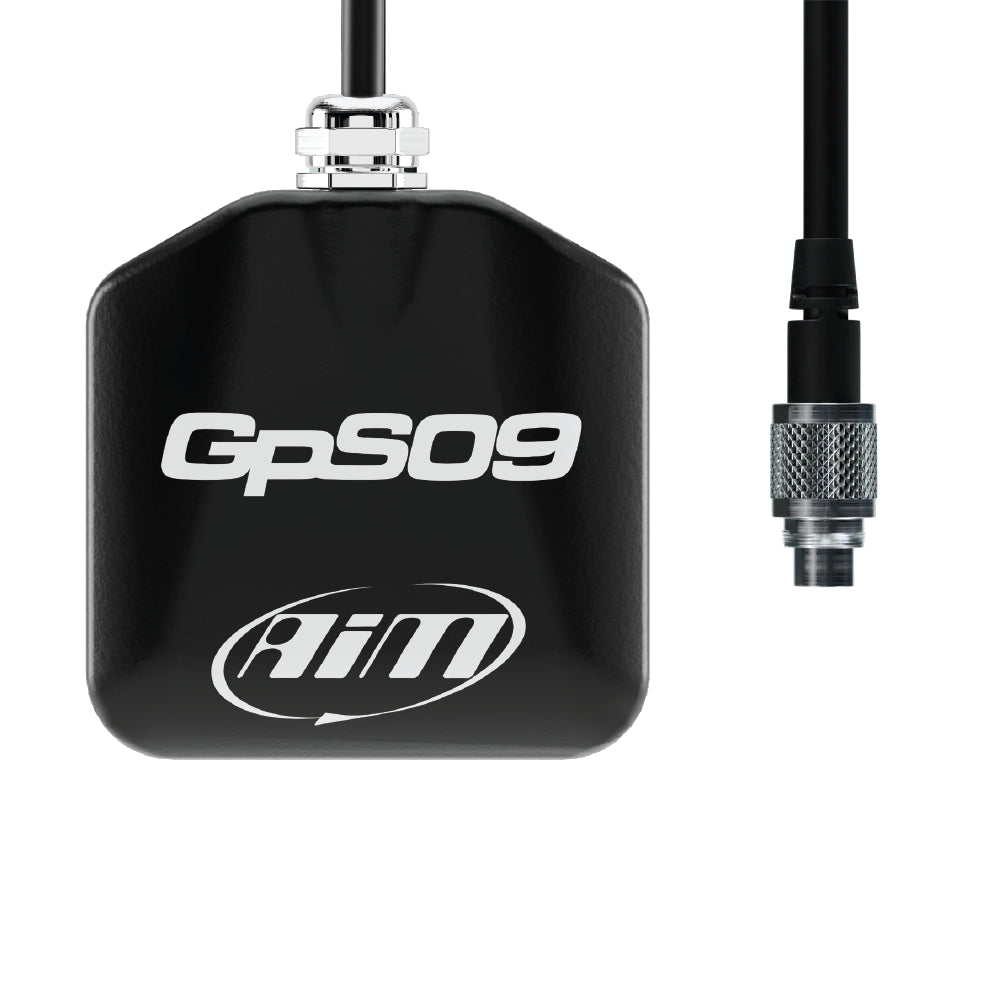

The included GPS module provides accurate GPS speed, lap timing and track mapping. You can view this track data directly from the dash or transfer it via Wi-Fi connection to our Race Studio 3 Software for more in-depth analysis. This will allow you to visualise graphs, histograms and tables to compare lap and session performance.

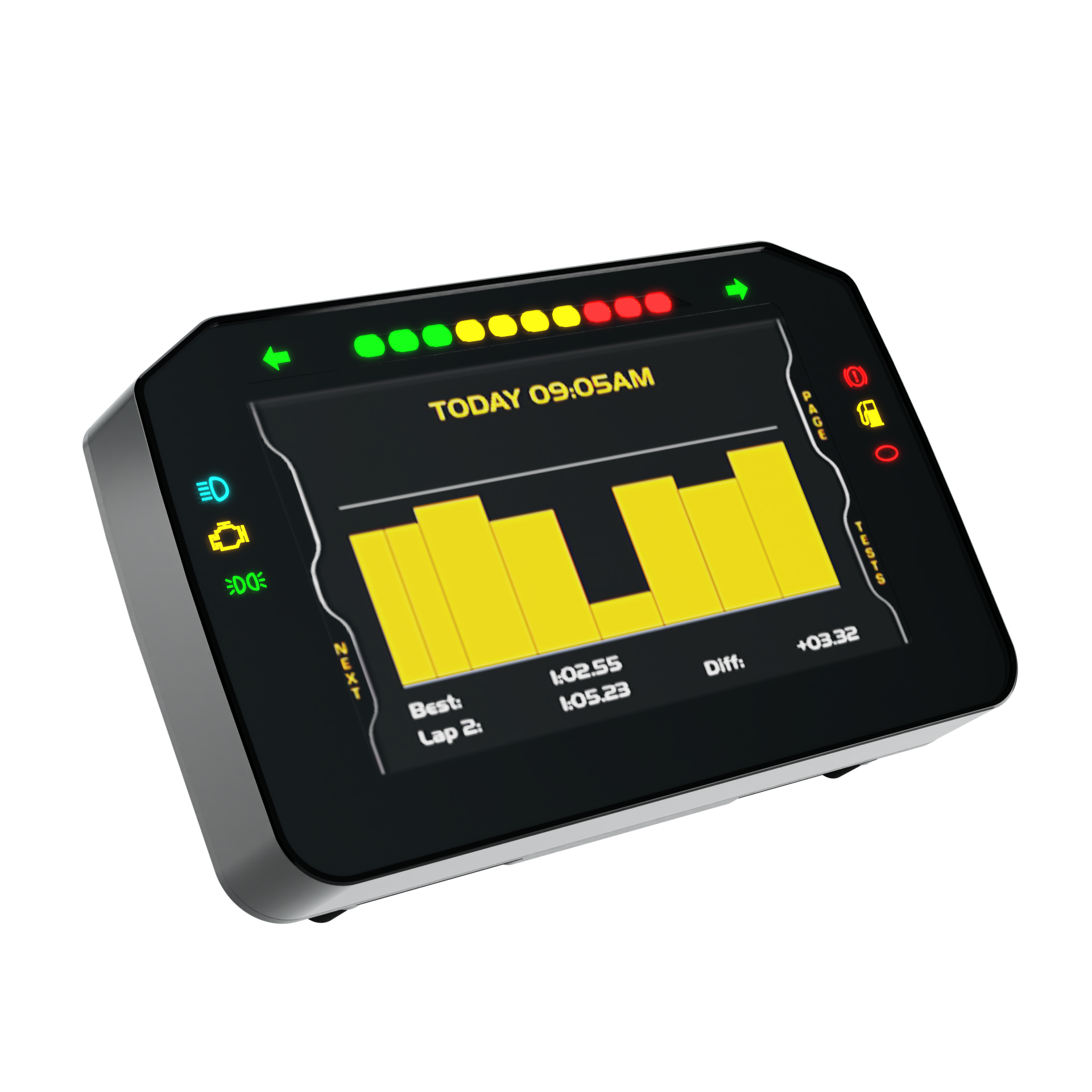

Customisable Display & Integrated LEDs

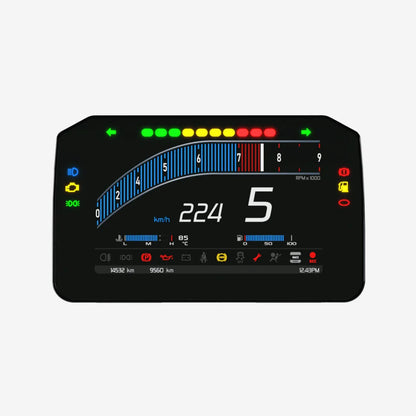

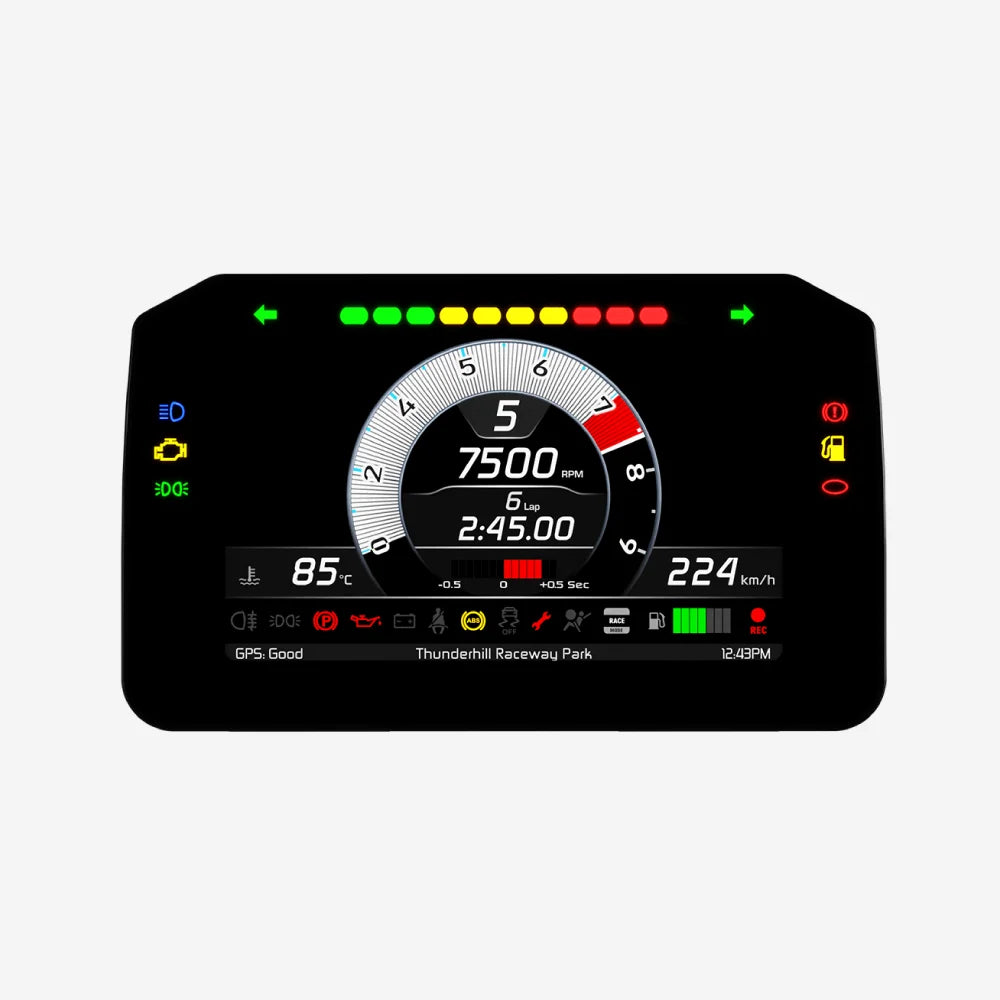

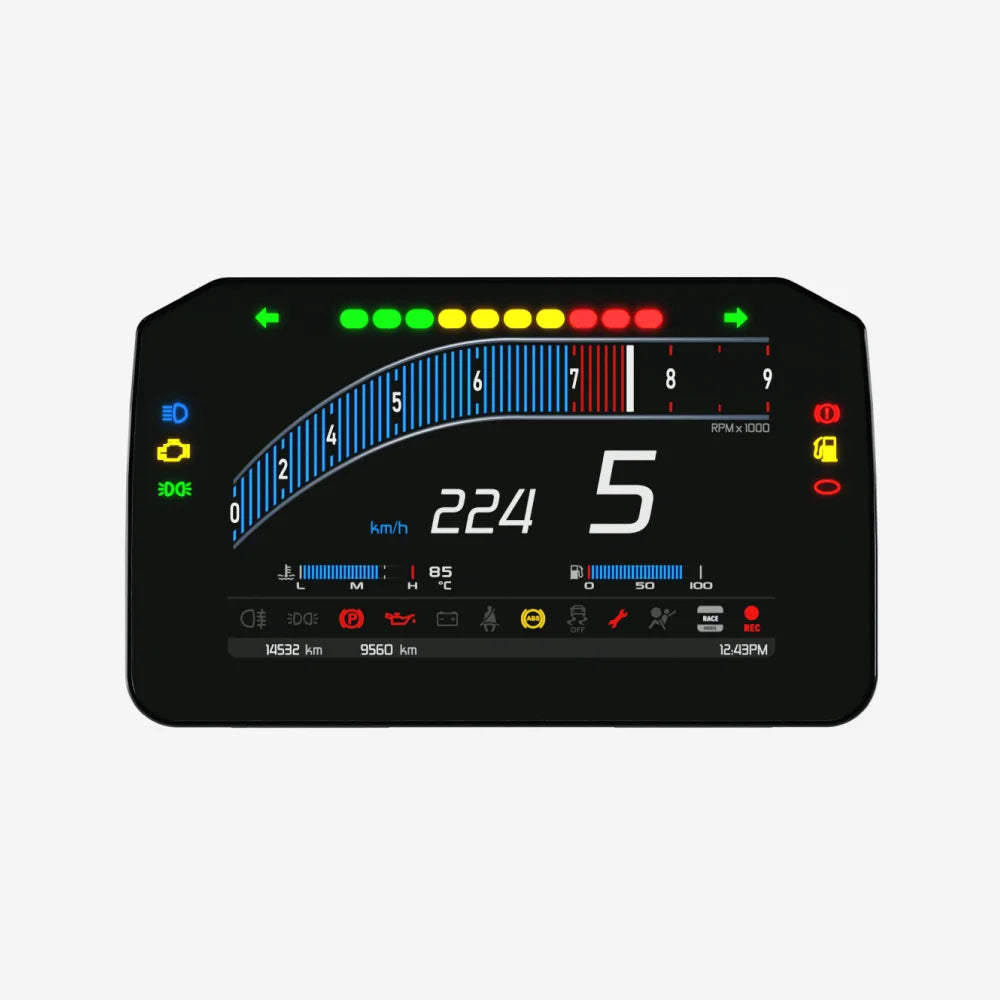

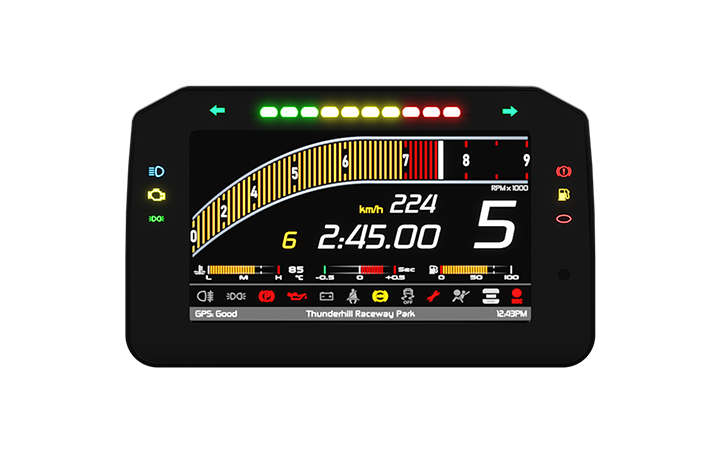

The MX2E dash has 2 types of displays: road or track and even analogue or digital. There are 16 display layouts to choose from with 4 different colour options, which can be customised to suit your preferences. There is also a wide range of icons available on the display, allowing you to easily see important information whilst you’re driving: rear fog light, position lights on, ABS on/malfunctioning, ABS off, hand brake, engine off, pressure low, seat belt not fastened, airbag off.

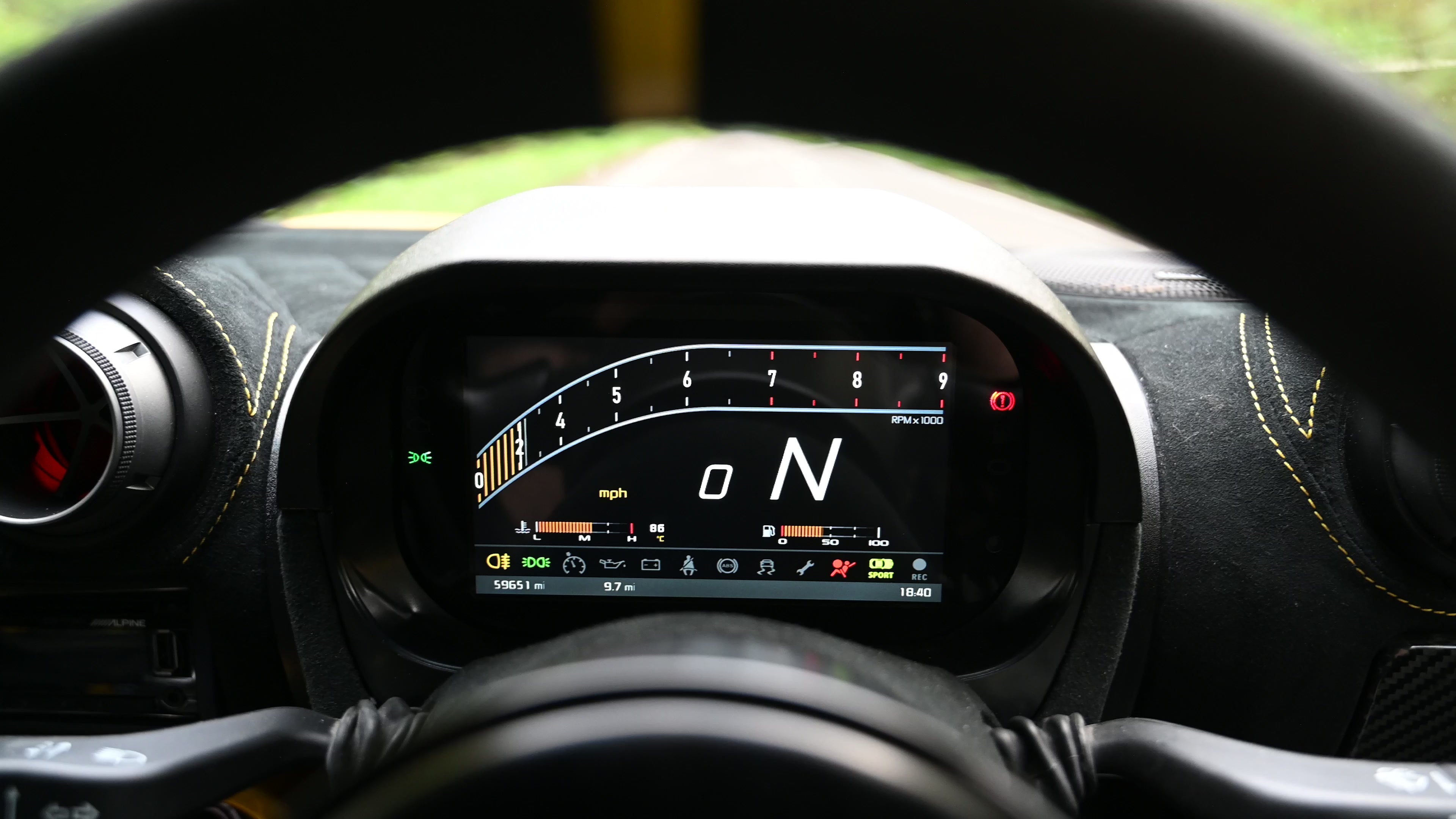

The MX2E features a total of 18 solid LEDs: left or right direction indicators, 10 shift lights LEDs and 6 status information LEDs showing hand brake on, fuel level low, immobiliser on, position lights on, high beam on and engine problems.

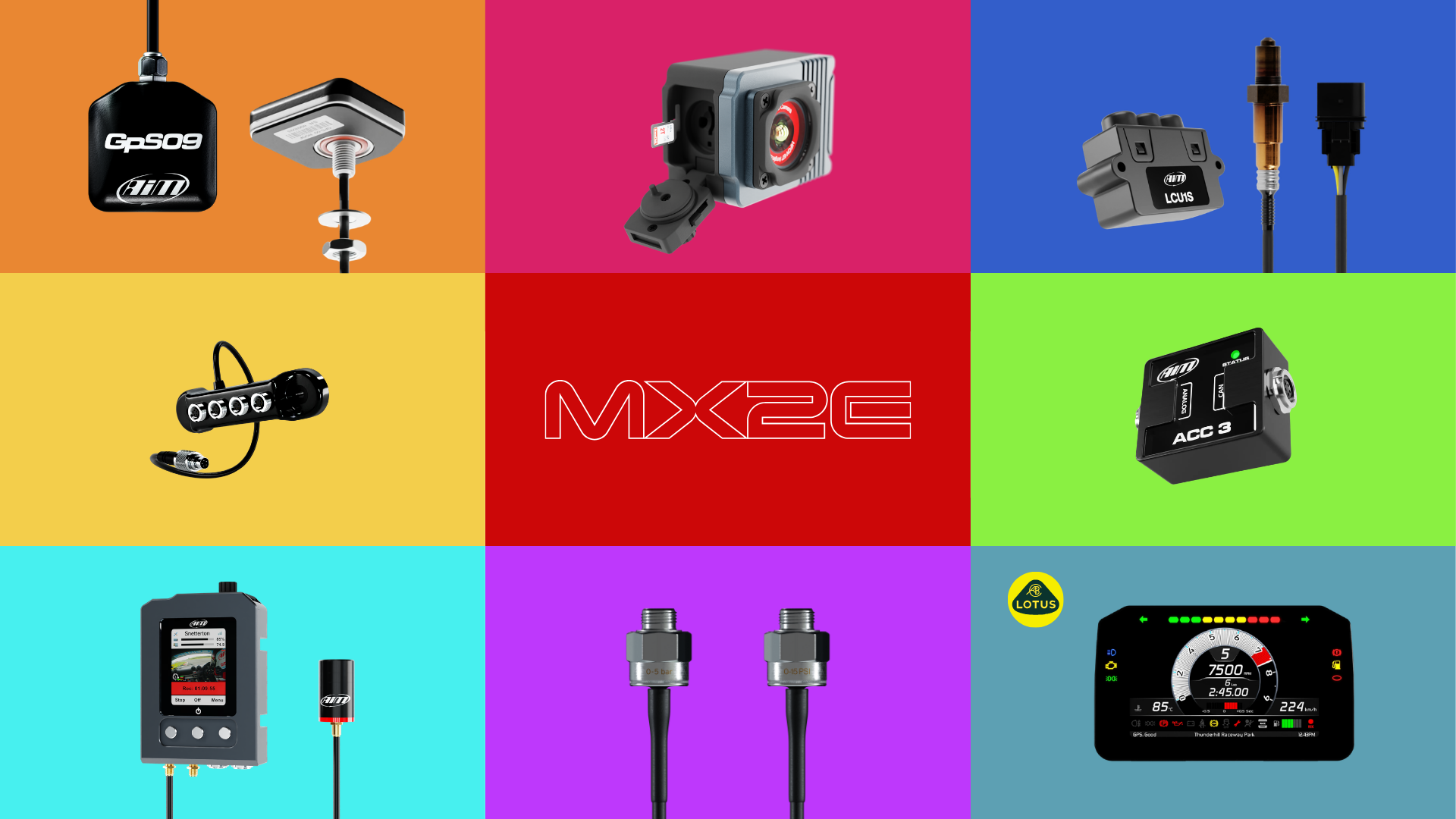

Compatible Expansions

The MX2E plug & play dash logger is compatible with various expansions and modules to enhance performance and expand on data collection. Compatible expansions include:

  • Lambda Controller: Monitor your air-fuel ratio for optimal engine performance.
  • Channel Expansion: Add more sensors to capture additional data points.
  • SmartyCam HD Cameras: Integrate video with data overlay for comprehensive analysis. Analogue camera input also allows you to swap your display into a mirror camera through push button command or event management.

MX2E Lotus Dash Expansion Example

Lotus Compatibility

The MX2E is compatible with Lotus Elise and Exige dashes that are fitted with Toyota engines:

  • 2004-2007: Requires an additional adapter harness (airbag-equipped cars only).
  • 2008-2020: Direct Fit.

Configure & Analyse with Race Studio 3

Configuration

With Race Studio 3 you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps by watching the video recorded by SmartyCam HD cameras.

Analysis

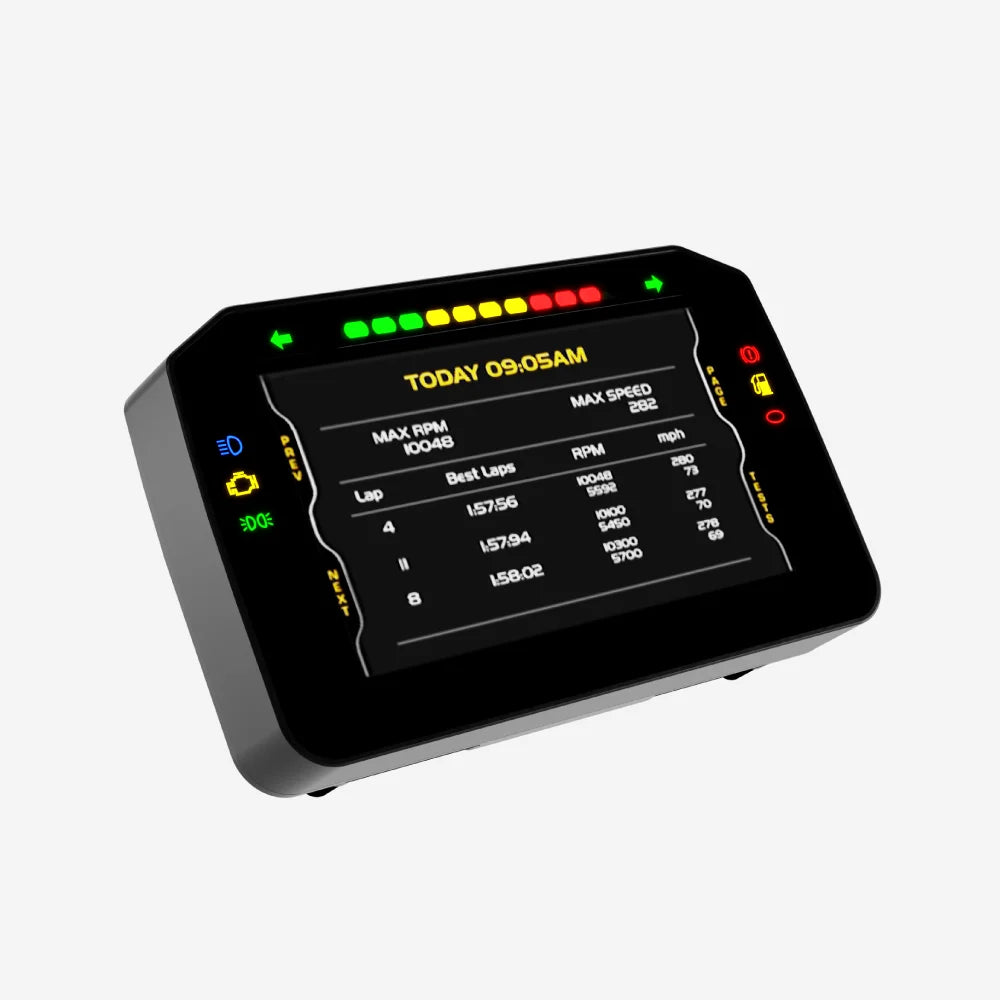

With Race Studio 3 you can also analyse all data recorded by MX2E and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing objective support to avoid mistakes and improve performance.


Visit Aim Academy Visit Aim Tech Support Download Race Studio Software

Description

Elevate Your Lotus Dash

The AiM MX2E provides a significant upgrade for Lotus Elise or Exige dashes, offering a seamless plug & play solution that provides real time data and enhanced functionality to transform your driving experience.

Key Features

6” high contrast TFT display Integrated GPS module
Exclusively Designed for Lotus dashes (2004-2020) 14 digital switch inputs
4 GB memory – enough for over 3000 hours of data Comprehensive data logging functionalities
Wifi connectivity CAN bus ECU interface
18 integrated LEDs Customisable display

MX2E Lotus Dash

Why Upgrade Your Lotus Dash With The MX2E?

The AiM MX2E offers a comprehensive upgrade to your Lotus dash, combining modern aesthetics with advanced data logging capabilities. At the push of a button, your dash can be customised from daily driving to a track-day data logger. Whether you're on the track or the road, the MX2E provides everything you need to enhance your driving experience.


Advanced Data Acquisition

The MX2E gathers data from the vehicle's ECU, the integrated GPS module and any additional sensors and modules that have been inputted. This data is then displayed directly on the Lotus’s dash in real time, displaying key performance metrics like RPM, throttle position, temperatures, pressures, lap times and more.

The included GPS module provides accurate GPS speed, lap timing and track mapping. You can view this track data directly from the dash or transfer it via Wi-Fi connection to our Race Studio 3 Software for more in-depth analysis. This will allow you to visualise graphs, histograms and tables to compare lap and session performance.


Customisable Display & Integrated LEDs

The MX2E dash has 2 types of displays: road or track and even analogue or digital. There are 16 display layouts to choose from with 4 different colour options, which can be customised to suit your preferences. There is also a wide range of icons available on the display, allowing you to easily see important information whilst you’re driving: rear fog light, position lights on, ABS on/malfunctioning, ABS off, hand brake, engine off, pressure low, seat belt not fastened, airbag off.

The MX2E features a total of 18 solid LEDs: left or right direction indicators, 10 shift lights LEDs and 6 status information LEDs showing hand brake on, fuel level low, immobiliser on, position lights on, high beam on and engine problems.


Compatible Expansions

The MX2E plug & play dash logger is compatible with various expansions and modules to enhance performance and expand on data collection. Compatible expansions include:

  • Lambda Controller: Monitor your air-fuel ratio for optimal engine performance.
  • Channel Expansion: Add more sensors to capture additional data points.
  • SmartyCam HD Cameras: Integrate video with data overlay for comprehensive analysis. Analogue camera input also allows you to swap your display into a mirror camera through push button command or event management.

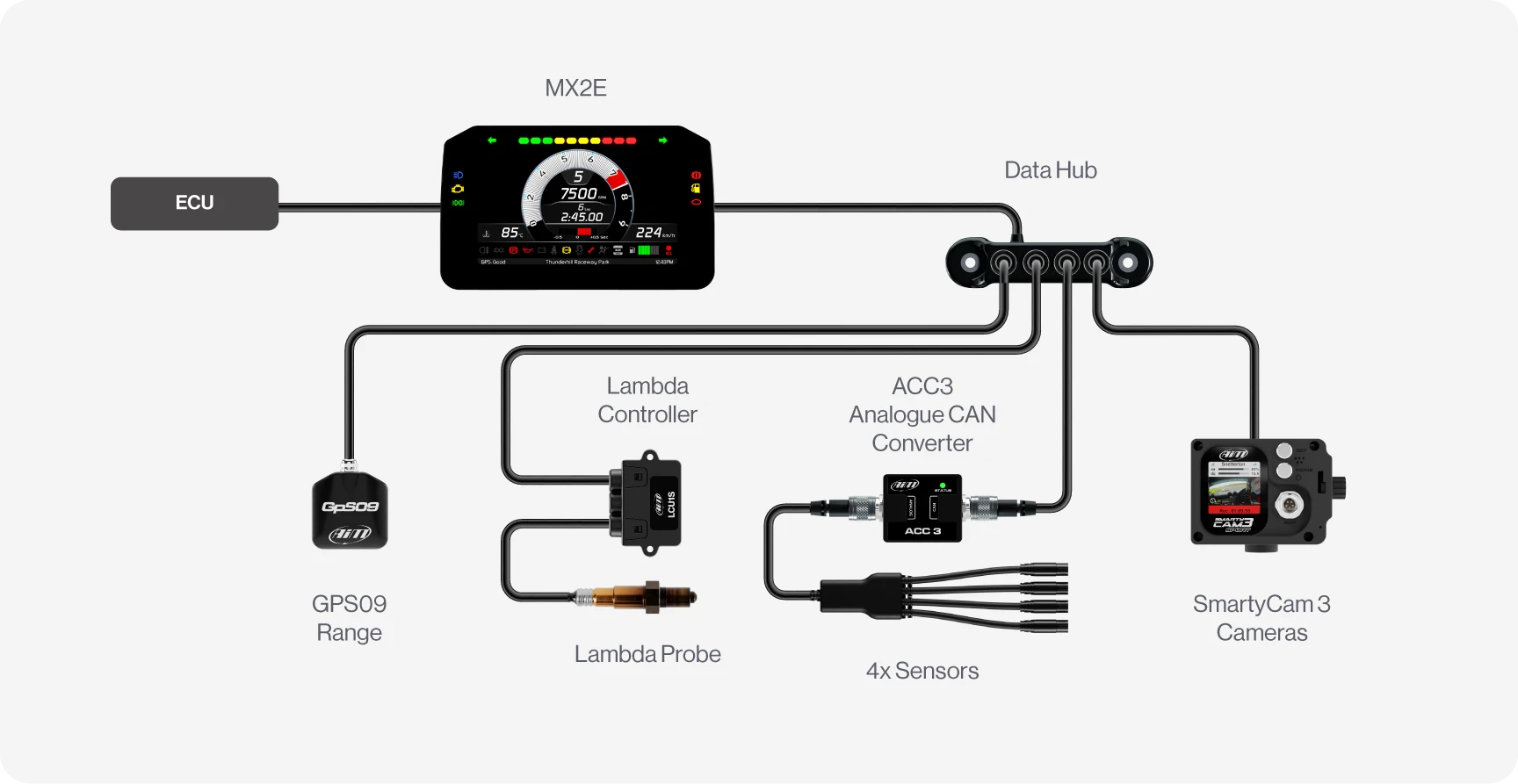

MX2E Lotus Dash Expansion Example

Lotus Compatibility

The MX2E is compatible with Lotus Elise and Exige dashes that are fitted with Toyota engines:

  • 2004-2007: Requires an additional adapter harness (airbag-equipped cars only).
  • 2008-2020: Direct Fit.



Configure & Analyse with Race Studio 3

Configuration

With Race Studio 3 you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps by watching the video recorded by SmartyCam HD cameras.

Analysis

With Race Studio 3 you can also analyse all data recorded by MX2E and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing objective support to avoid mistakes and improve performance.


Visit Aim Academy Visit Aim Tech Support Download Race Studio Software

Technical

AiM MX2E Plug & Play Dash Logger Kit for Lotus Elise / Exige

  • Display: 6" TFT
  • Resolution: 800 x 480 pixels
  • Contrast: 600: 1
  • Brightness: 700cd/m2 - 1,100 Lumen
  • Ambient Light Sensor: Yes
  • Integrated buttons in cluster: 4
  • Status information LEDs: 6
  • Shift light LEDs: 10
  • Turn indicators: 2
  • CAN connections: 2
  • ECU connection: Yes
  • External modules: GPS Module, Channel Expansion, Lambda Controller, SmartyCam HD
  • Wi-Fi connection: Yes
  • Rear camera input: Yes
  • Internal memory: 4GB
  • Body: Anodised Aluminium

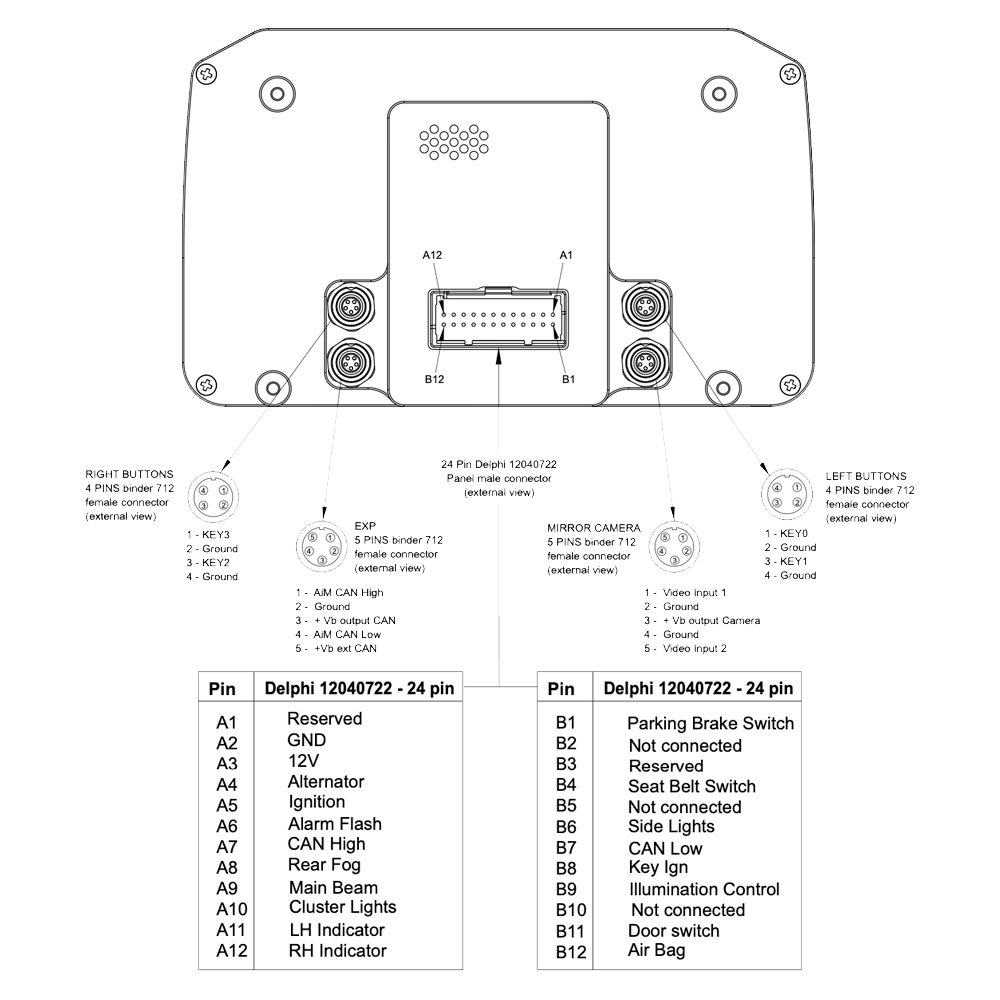

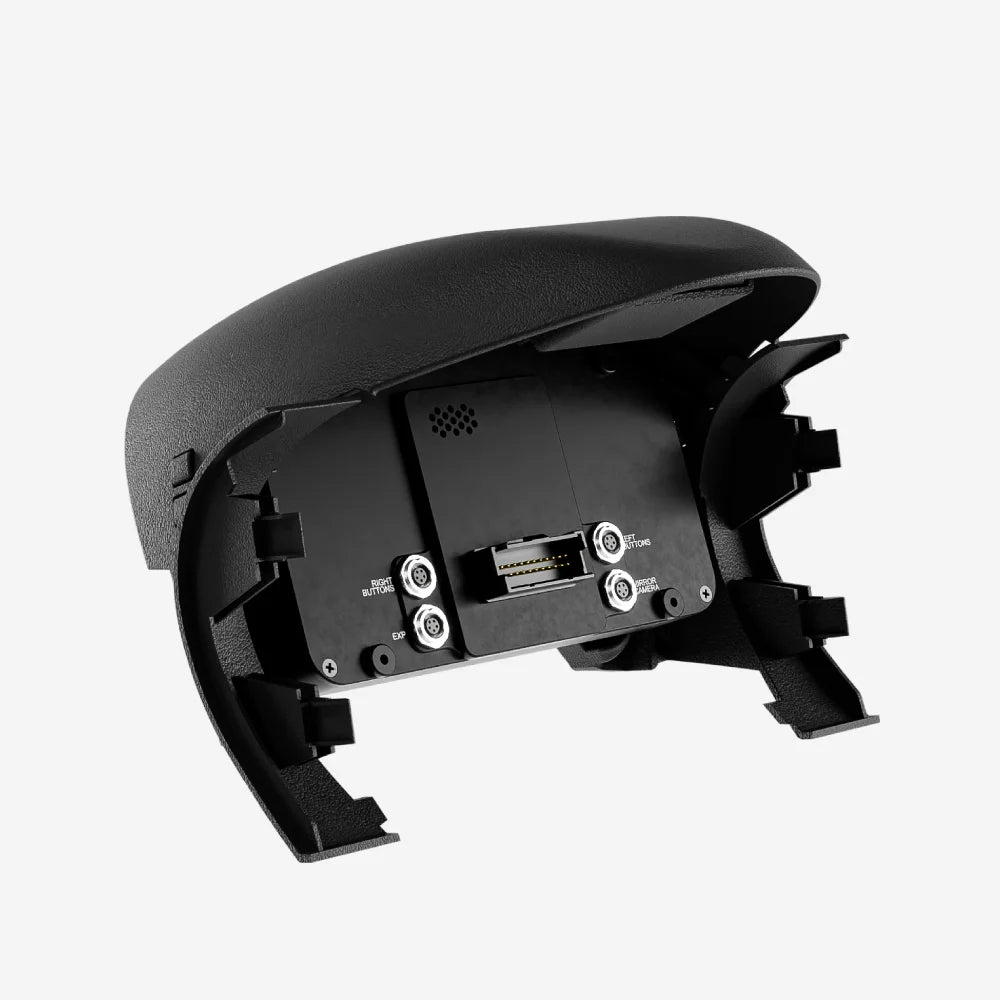

  • Connectors: 1 Delphi 12040722 connector & 4 binder 712 connectors

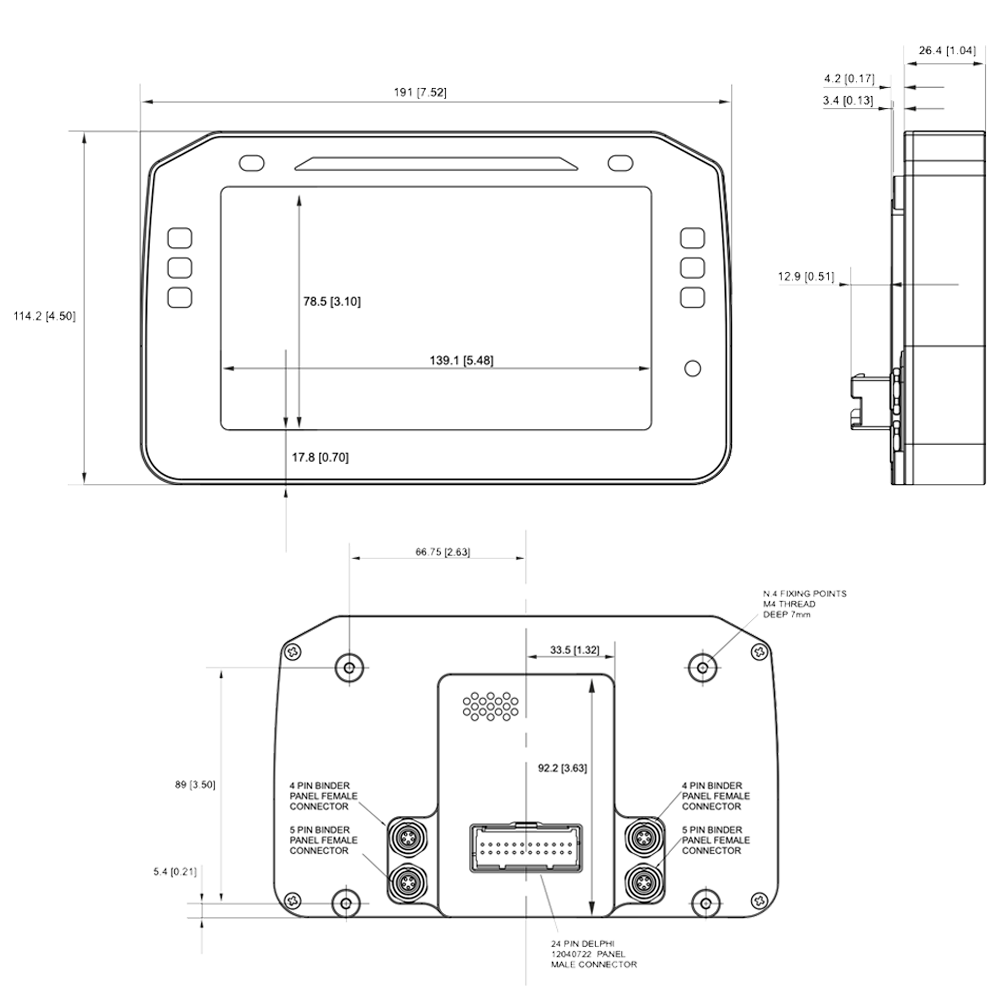

  • Dimensions: 191 x 114,2 x 26,4 mm
  • Weight: 640g
  • Power consumption: 400 mA
  • Waterproof: IP65

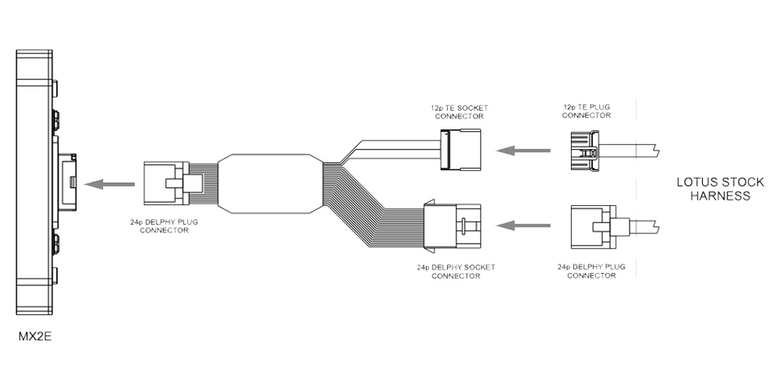

  • Adapter Harness: Elise/Exige model years 2004-2007 (version with airbag only)



What's in The Box

AiM MX2E Plug & Play Dash Logger Kit for Lotus Elise / Exige

  • MX2E Dash Logger

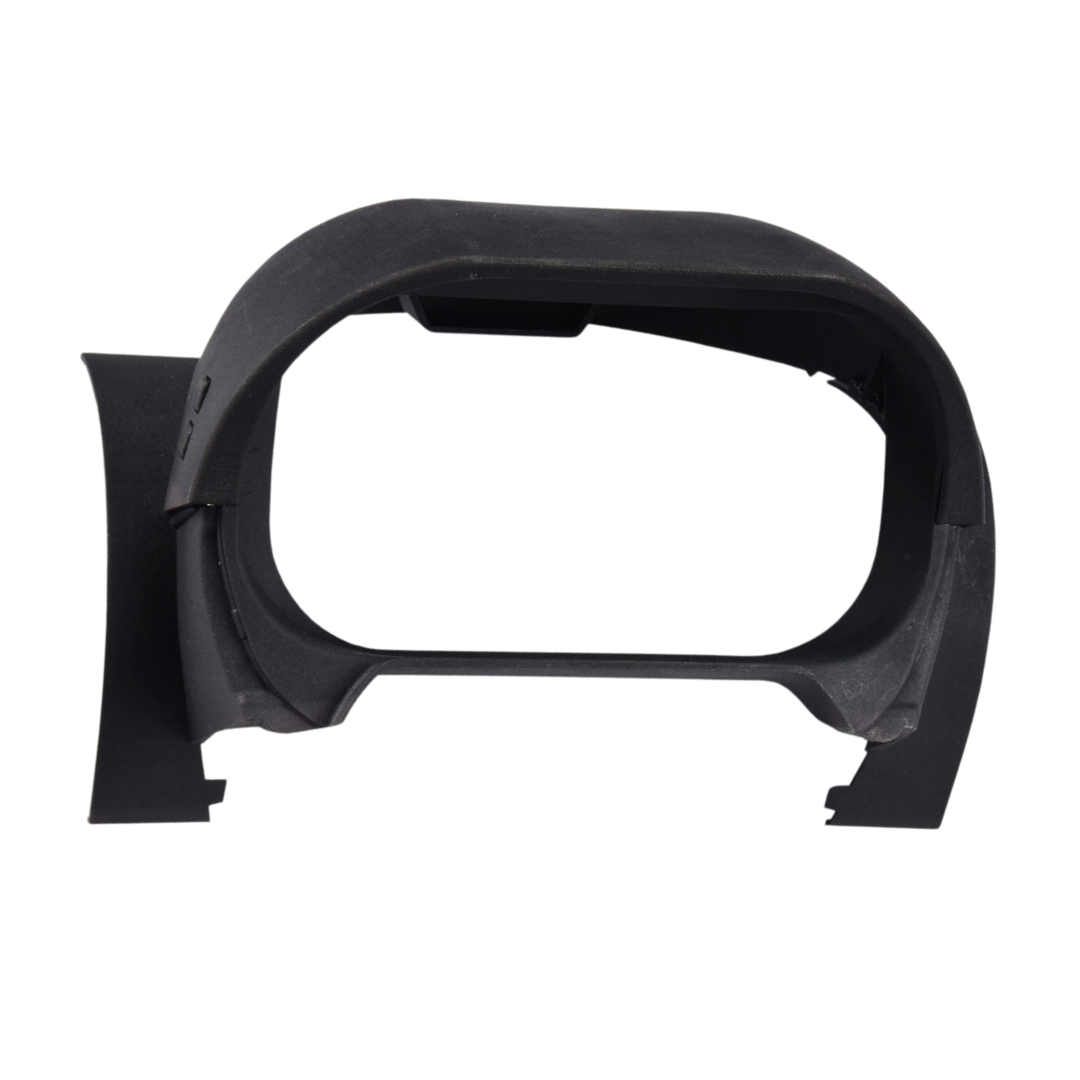

  • Cluster
  • GPS Module

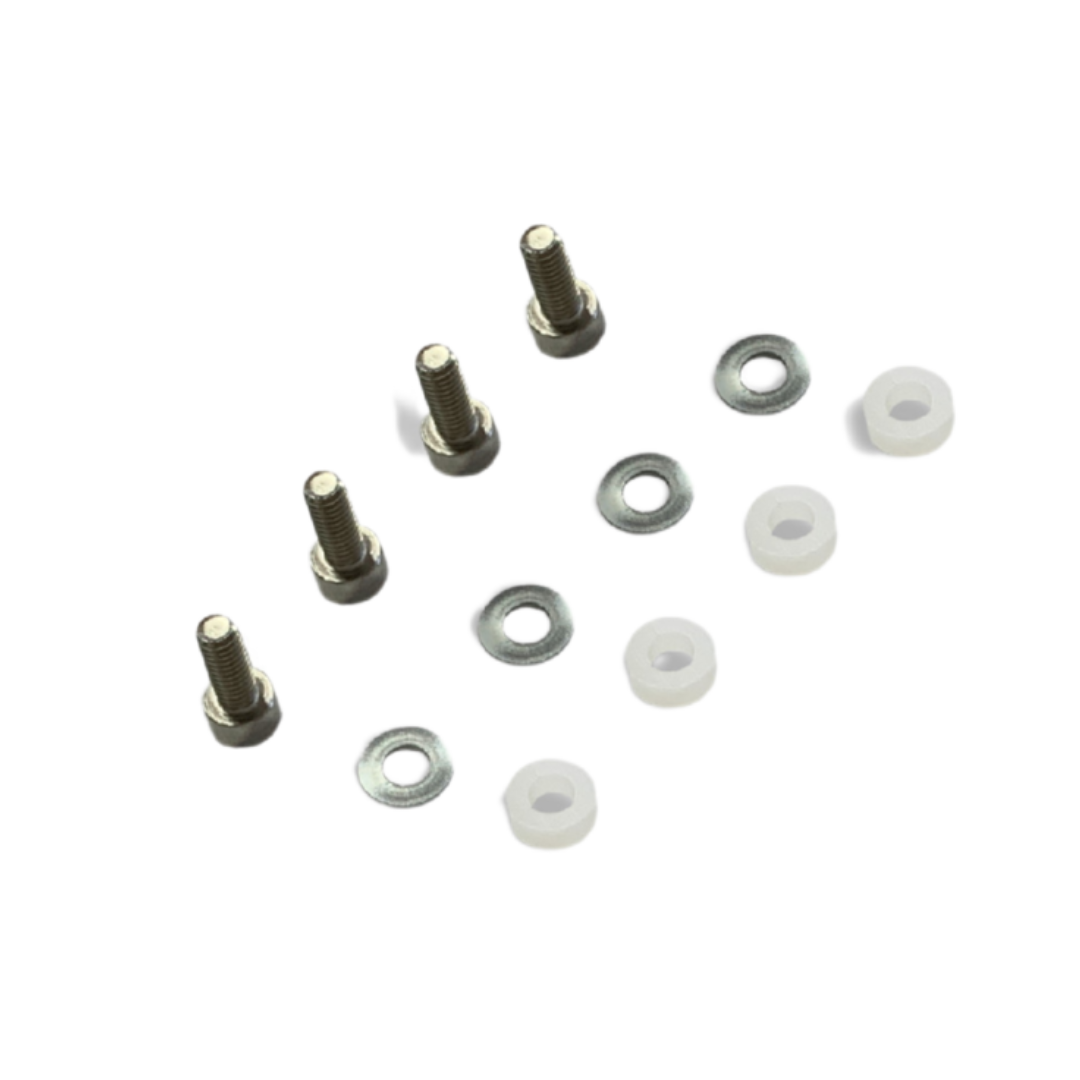

  • Screws & Washers
  • Adapter Harness (optional if required)
