Aim X Log Compact Data Logger

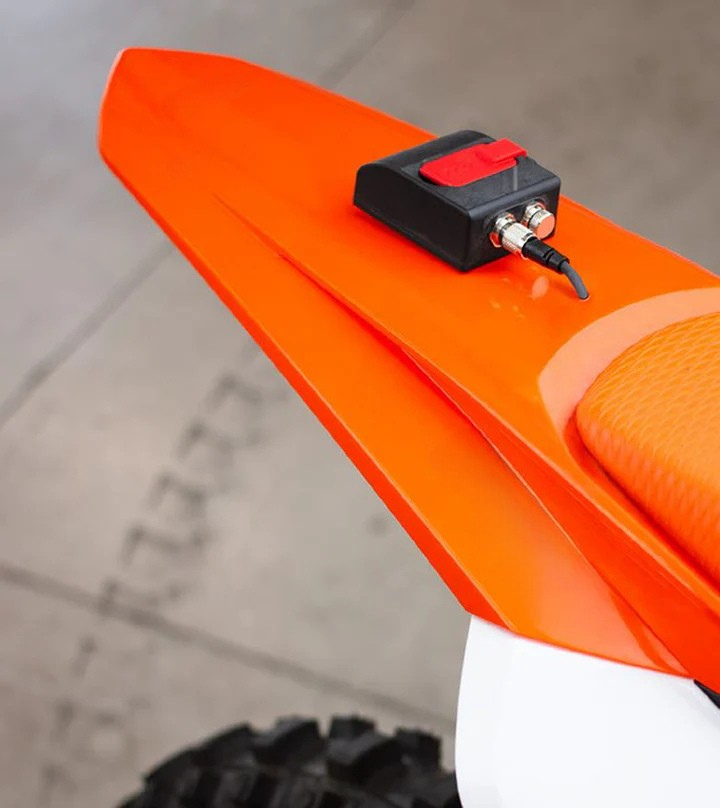

The Aim X Log is a compact, lightweight, and waterproof data logger that records everything you need from your vehicle. With direct ECU connection, advanced GPS, built-in inertial platform, and wide expansion options, the X Log offers the same data-gathering capabilities as the Solo 2 DL, only in a smaller, screenless format that makes it perfect for motorcycles, single-seaters, or vehicles with limited cockpit space.
Why Choose the X Log Data Logger
The Aim X Log data logger is essentially a Solo 2 DL without the screen: offering the same logging power, precision, and expandability in a smaller, lighter package. For riders, racers, or anyone working with limited space but still demanding full-scale data analysis, the X Log is the perfect solution.
It provides a powerful solution for anyone who wants to capture and analyse their performance data without needing an on-board display. It integrates GPS lap timing, ECU data logging, acceleration and gyro measurements, and expansion support in a rugged unit that’s smaller than the palm of your hand.
X Log Features
The X Log calculates and records:
- Lap times
- Sector times
- Vehicle position and speed
- 3D acceleration and gyro
- ECU data via CAN, K-Line or RS232 connections.
(You can select the protocol of your car/bike among thousands of pre-defined protocols, or easily develop your own) - Digital RPM input from the primary of the coil (150-400V) or from a square wave (8-50V) when no ECU connection is available.
In addition, the X Log features a second CAN for connecting external device or Aim Expansion, meaning you can add a Lambda Controller, analogue inputs, and a professional motorsport camera for enhanced functionalities.
GPS & Inertial Platform
- GPS Technology: Tracks position and speed at 25Hz using four satellite constellations (GPS, GLONASS, BeiDou, Galileo) with <0.5m precision.

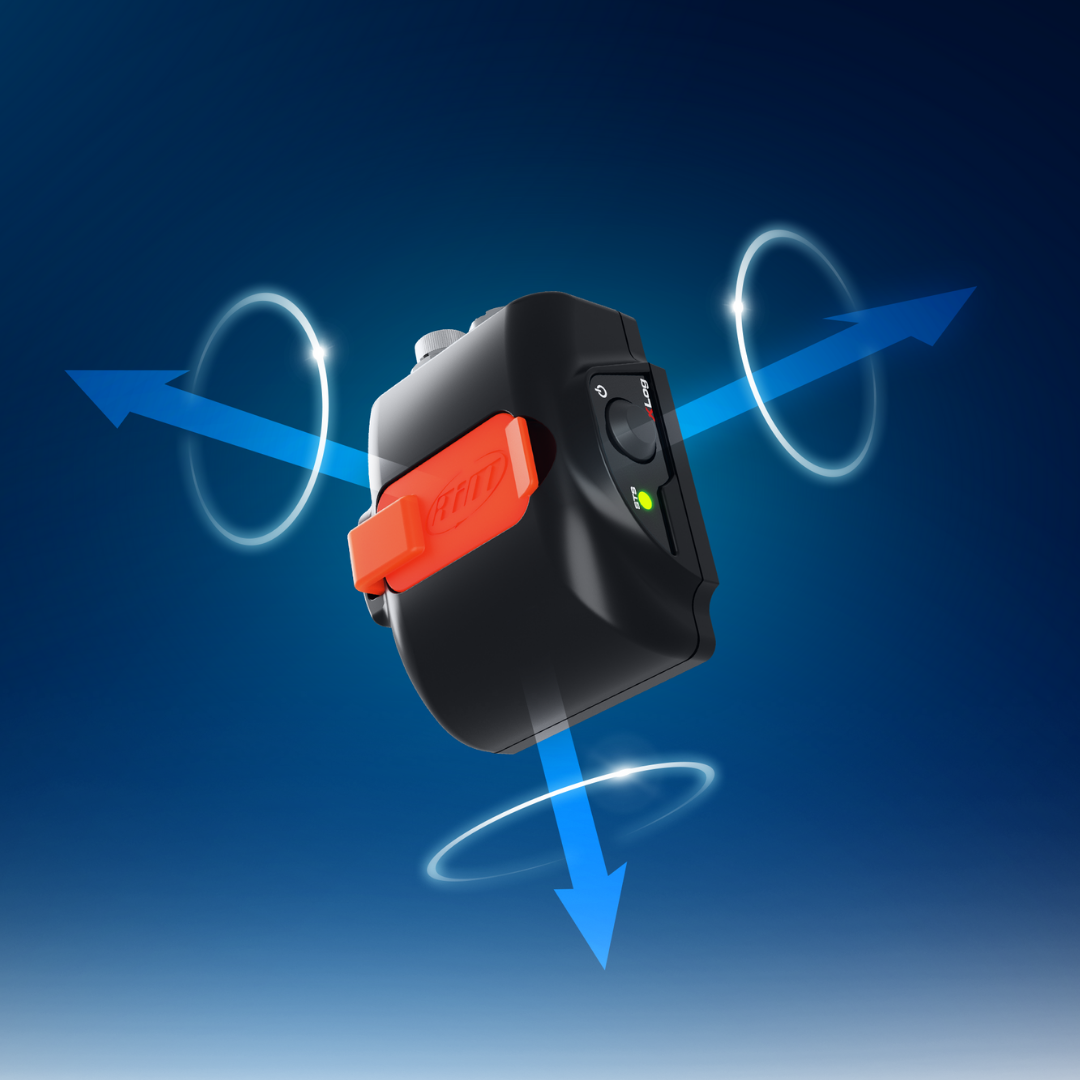

- 6-Axis IMU: Records 3D accelerations and angular velocity at 100Hz, allowing in-depth analysis of braking, acceleration, and chassis behaviour.
- Lap Timing & Sectors: Automatically recognises track layouts, samples laps and sectors, and provides all the raw data for Race Studio 3 analysis.
X Log Connectivity
The X Log is designed to connect seamlessly to your vehicle and your data analysis workflow:
- ECU Connection: Supports thousands of predefined CAN, RS232, or K-Line protocols, or you can build your own protocol via CAN builder.
- Second CAN Option: Configure for Aim expansions, or connect additional sensors and third-party CAN devices.
- Wireless: Integrated Wi-Fi and Bluetooth for fast, cable-free data transfer.
- USB-C & Memory Key: 4GB internal memory plus a removable 16GB USB-C key for quick access.
Compact, Durable Design
Measuring only 72.3 × 65.3 × 30.3mm, the X Log is compact to fit in even the tightest cockpits. Its rugged, waterproof housing ensures reliable operation in all conditions. With a built-in rechargeable lithium battery (up to 10 hours) and support for an external 8–16V supply, the X Log is built for trackside convenience.
Analyse with Race Studio 3

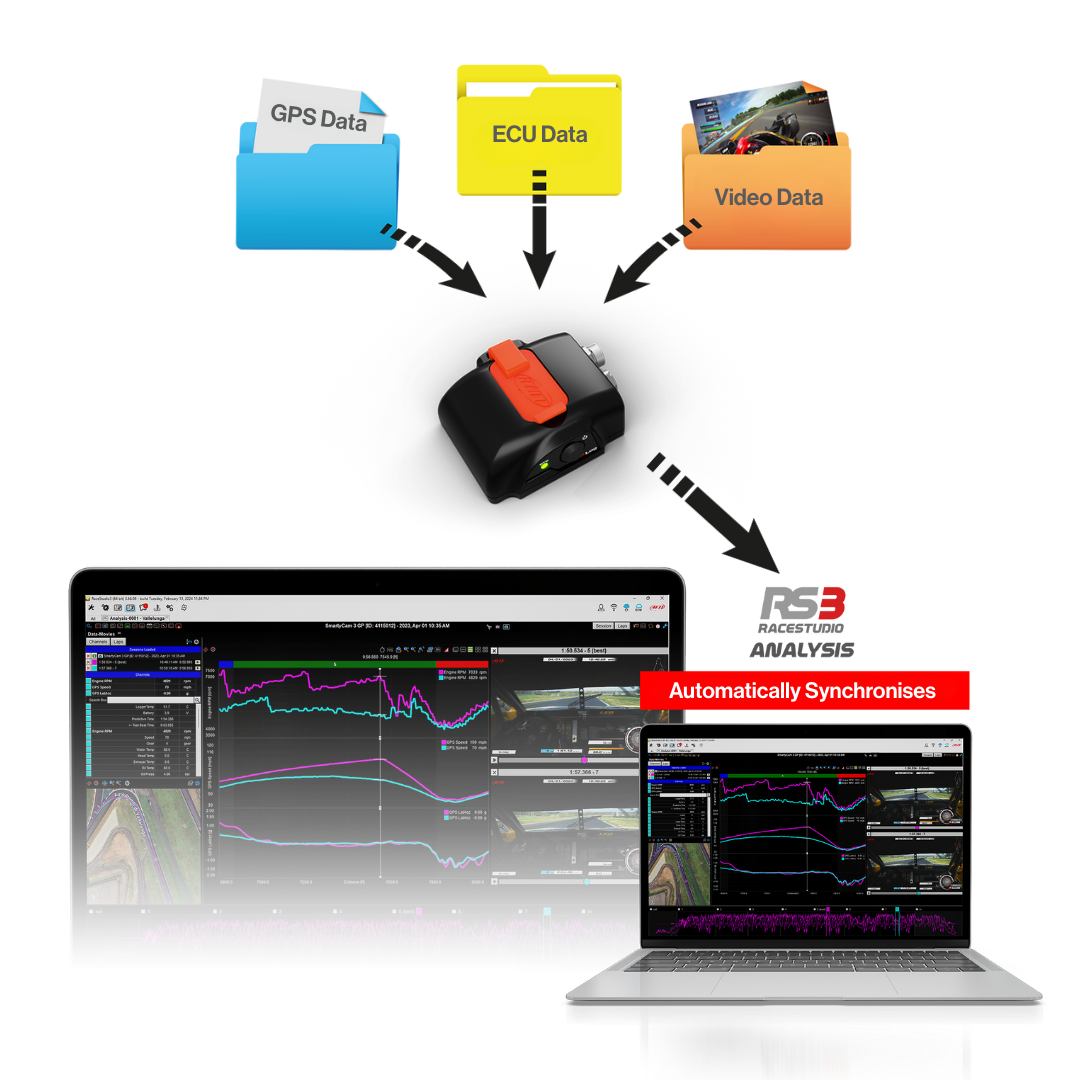

All data logged by the X Log can be downloaded wirelessly or via USB-C, then reviewed in Aim’s professional Race Studio 3 software.
Analyse lap times, sector times, GPS maps, accelerations, engine data, and video (when paired with a SmartyCam 3) to improve your performance and understand your vehicle in detail.
Histograms, XY view, diagrams, maps, and videos recorded with SmartyCam 3 are automatically synchronised for better comparison.
Expand Your System
The X Log data logger works seamlessly with Aim’s ecosystem of devices thanks to its second CAN connection.
The second CAN option can be used for Aim Expansions or to connect sensors and other devices that communicate via CAN and use existing protocols or create a dedicated protocol for the second CAN.
- ACC3 Analogue to CAN Converter: Add up to four analogue channels for pressure, temperature, suspension, and other sensors.
- LCU-One Lambda Controller: Capture air/fuel ratios and exhaust data for tuning and performance optimisation.
- SmartyCam: Overlay logged data directly onto video for detailed driver analysis.
- Data Hub: Split EXP ports to connect multiple expansions such as GS-Dash displays, Lambda controllers, or additional converters.
Technical Information
Technical Specs
Included in the Box
X Log
Mini USB Drive 16GB
Your Chosen Harness
USB A – USB C Cable
-
Free Aim Software
