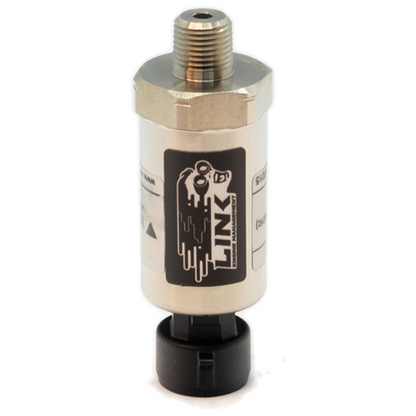

Link Pressure Sensor (PS150)

Link pressure sensor, suitable for use with either oil or fuel. 10 bar/150PSI, with NPT thread.

Oil or Fuel pressure
10 Bar/150psi
1/8” NPT Thread
Includes plug and pin kit

 Up to 150 PSI above atmospheric pressure, cannot be used to read vacuum
0.5v = 0bar / 0PsiG
4.5v = 10 Bar / 145.03PsiG

Link Pressure Sensor (PS150)

• Pressure Sensor 150PSI 1/8" NPT
• Plug and pins
