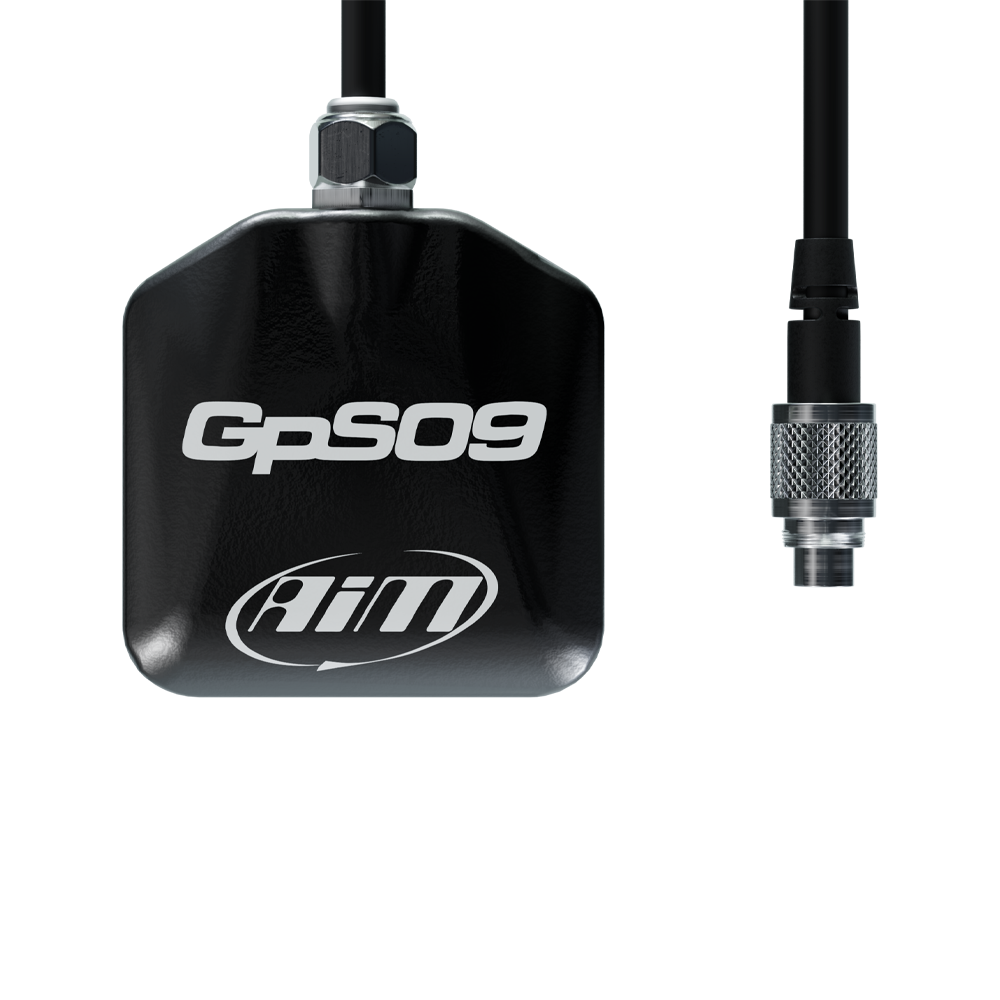

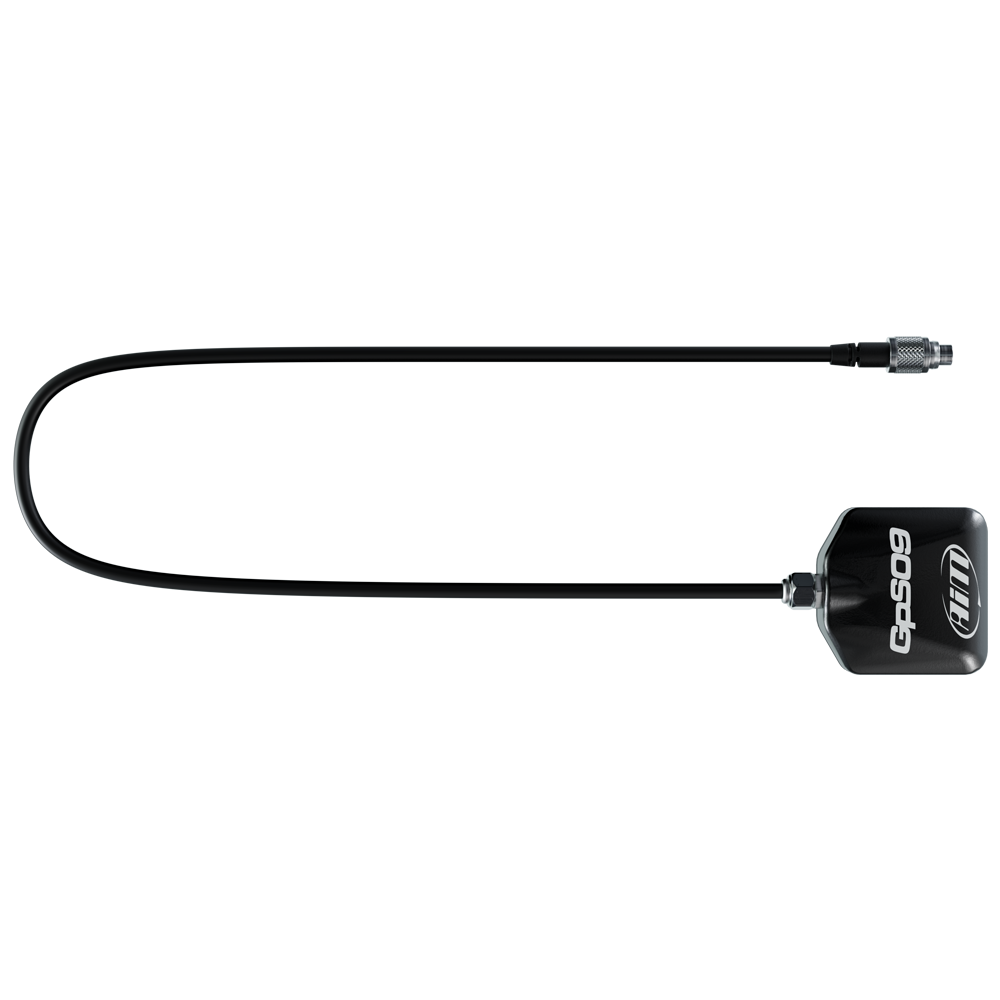

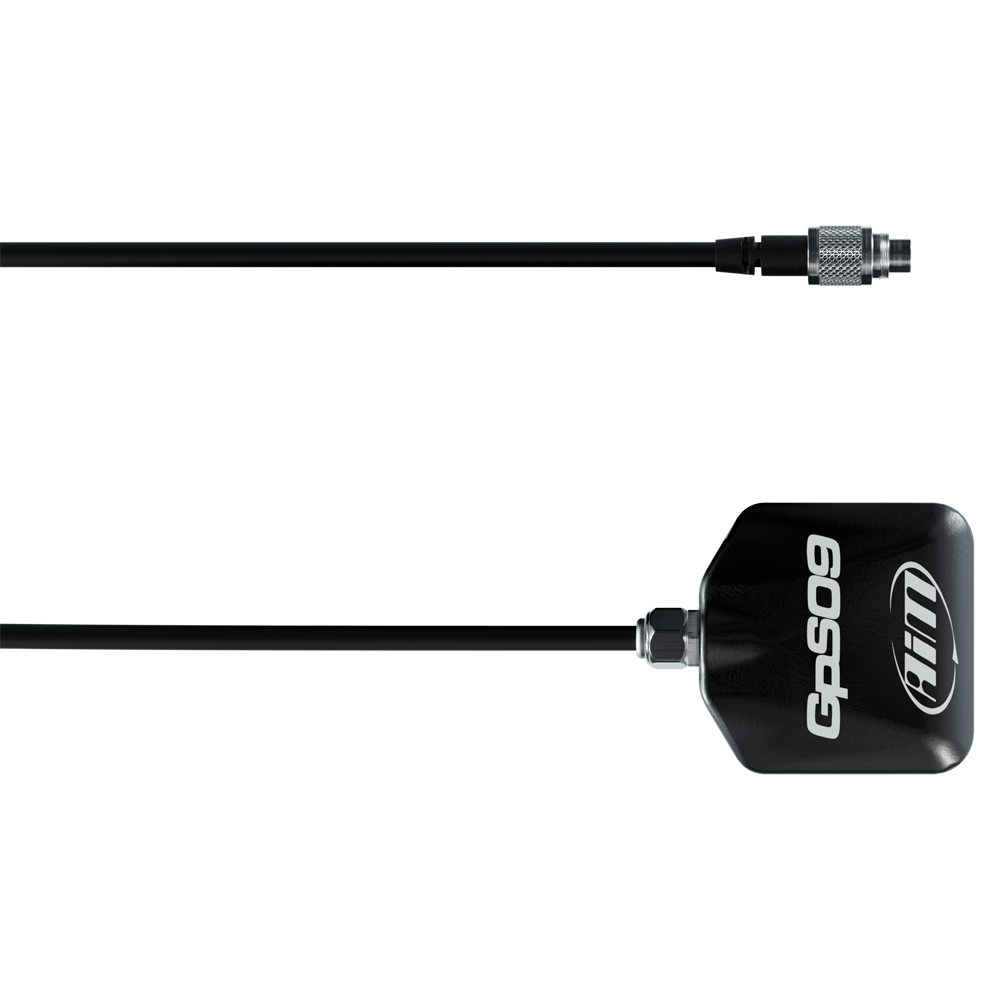

AiM GPS09 Module Open

SKU: GPS-O-CAN

{{ product.metafields.descriptors.subtitle.value

£275.00
£275.00

+ VAT (UK Only)

Shopify Planetを使用したカーボンニュートラルな配送
注文すべてでカーボンニュートラルな配送

GPS09c Open Logo

The coveted Aim GPS, now available to everyone.

GPS09c OPEN
CAN CONNECTION | RS232 CONNECTION | AIM CAN CONNECTION

GPS09c Open is a stand-alone device that can stream, in completely configurable messages, all the GPS data at 25 Hz. It is proposed also in the Pro version that features also a 100 Hz 6 axis IMU.

gps09c open
  • GPS, GLONASS, Galileo, Beidou constellations support
  • 30 second cold start TTF
  • 1 second hot Start
  • 0.5 m CEP accuracy
  • Internal 25 mm antenna
gps09c open
  • In addition to all the features of GPS09c Open
  • IMU - 100 Hz 6 axis intertial platform system

GPS channels available at 25 Hz:

  • Altitude
  • Latitude
  • Logitude
  • Sats number
  • Pos Accuracy
  • Speed Accuracy
  • GPS Lateral acceleration
  • GPS Linear acceleration
  • GPS Heading
  • GPS Yaw Rate
  • GPS Hour
  • GPS min
  • GPS Sec
  • GPS Millisec
  • Year
  • Month
  • Day
  • Week number
  • ITOW
  • Unix Time

IMU data available through CAN connection at 100 Hz (GPS09c Pro Open only):

  • Acceleration X
  • Acceleration Y
  • Acceleration Z
  • Pirch rate
  • Yaw rate
  • Roll rate
GPS09c Open
THREE OUTPUT STREAMS

GPS09c Open is developed to be compatible with all AiM or not AiM systems.
It offers three output streams; for not AiM systems you can configure the protocol for a CAN or RS232.

OPEN RS232

CONNECTION

Freely user configuarable

OPEN CAN

CONNECTION

Freely user configuarable

AIM CAN

CONNECTION

To be connected as expansion
using the AiM CAN network

A dedicated USB cable is available for the configuration,
through the Race Studio 3 software.

racestudio 3 logo
GPS09c open
EASY CONFIGURATION WITH RACE STUDIO 3

CAN connection

AiM Race Studio 3 software offers the possibility to freely configure the CAN messages.

It is possible to set:

  • Baud rate
  • ID
  • DLC (1-8 bytes)
  • Byte order
    (little endian, big endian)
  • Messages frequency
CAN Conncetion

RS232 Connection

GPS09c Open may be configured for transmitting the GPS NMEA message you need through an RS232 stream.

It is possible to set:

  • Baud rate
  • ID
  • DLC (1-8 bytes)
  • Byte order
    (little endian, big endian)
  • Messages frequency
CAN Conncetion

Both GPS09c Open and GPS09c Pro Open are proposed in two different mechanical versions. Vehicle with carbon fiber roof or reduced glass surface may limit the GPS signal: the Roof version of AiM GPS09c Open is specifically designed to avoid signal loss.

GPS09c open standard and roof version roof version of the GPS09c open

Configure & Analyse with Race Studio 3

Configuration
With Race Studio 3 you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam HD cameras.
Analysis
With Race Studio 3 you can also analyse all data recorded and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing objective support to avoid mistakes and improve performances.
Visit Aim Academy Visit Aim Tech Support Download Race Studio Software

AiM GPS09 Module

  • Dimenstions: 64.8 x 53.2 x 19.7mm
  • Weight: 60.5g



AiM GPS09 Module

  • GPS09 Module
