Ducati 848, 1098, 1198 AiM Solo 2 DL & EVO4S Plug & Play Cable

The AiM ECU plug & play cable has been specifically designed for Ducati bikes. Allowing easy installation to a Solo 2 DL and EVO4S Data Logger. With a 7-pin 712 male binder connection.

Key Features :

Ducati Plug & Play ECU Cable

The AiM ECU plug & play cable has been specifically designed for the Ducati bike. This plug & play cable can be used for the Solo 2 DL and EVO4S Data Logger.

The cable is an easy fitment to your bike and allows ECU data to be logged.

Please Note: If you are unsure this ECU cable will fit your bike, don't hesitate to contact one of our team. Either by email, phone or online chat.

Plug & Play

The plug & play cable currently fits the following Ducati bike models:

848 Base/EVO/EVO Corse - 2007-2013	1098 Base/S/S Tricolore/R - 2007-2009
1198 Base/S/S Corse/R Corse/SP - 2009-2011

Example data protocols

Example data protocols sampled include RPM, Active gear, Vehicle speed, Front wheel speed, Rear wheel speed warning led, Engine coolant temperature, Brake pressure, Throttle position, Speed, ABS intervention, ALC intervention, Low fuel level, Traction control, Oil pressure, Map menu and many more. Refer to the technical sheet in the Downloads Tab for an extensive protocol list.

Please Note: For these models/years Aim recommends not to remove the stock dash. Doing so will disable some of the bike functions or safety controls.

Expand Your System

These are some of the items that can be added to your bike for incrementing performance and data.

Ducati 848, 1098, 1198 AiM Solo 2 DL & EVO4S Plug & Play Cable

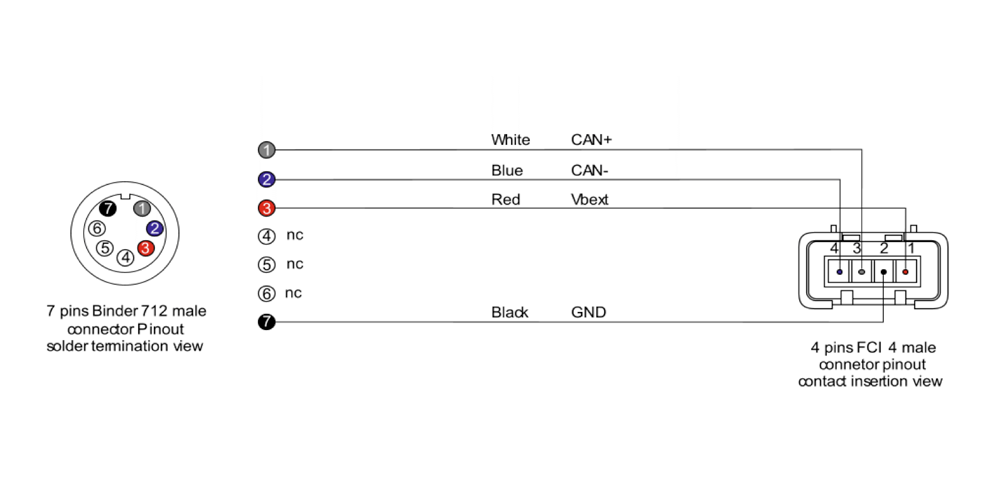

• Below is a pinout drawing for the Ducati 848, 1098, 1198 plug & play connection cable

Ducati 848, 1098, 1198 AiM Solo 2 DL & EVO4S Plug & Play Cable

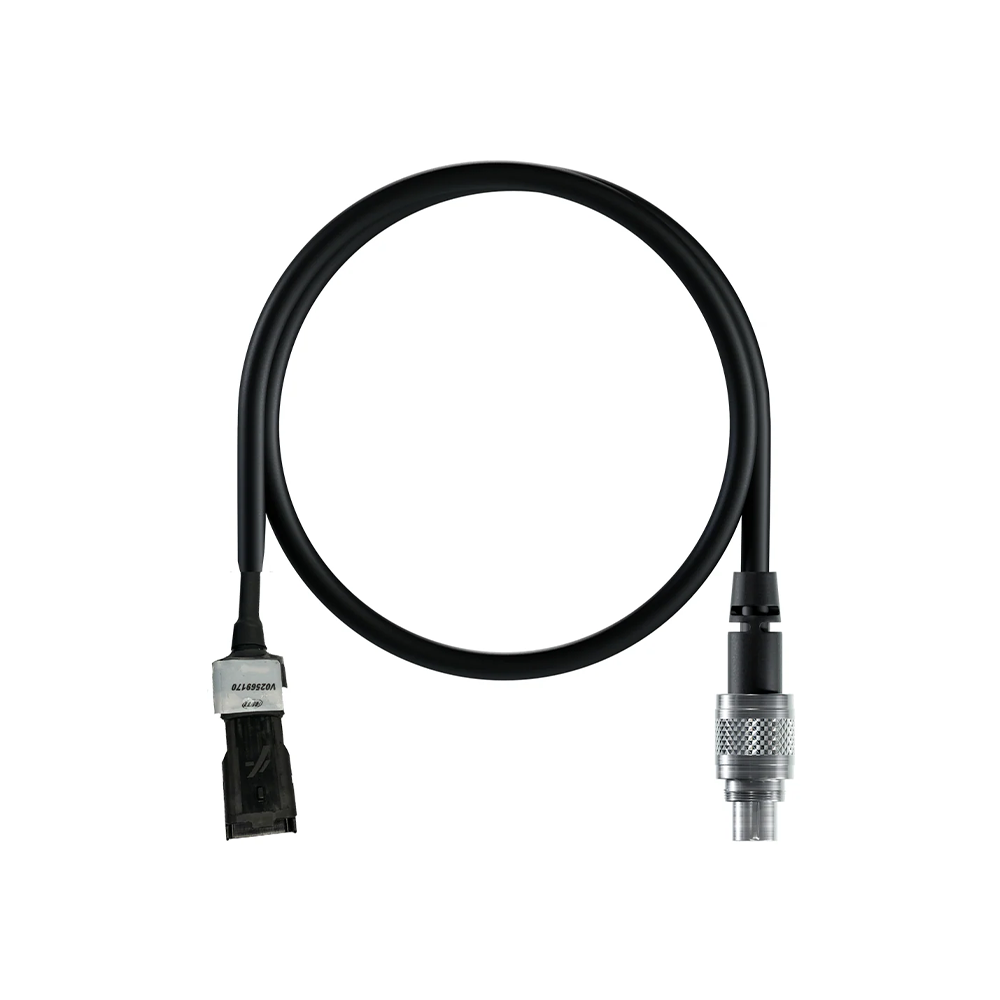

• Ducati 848, 1098, 1198 Plug & Play connection cable
