Super B Touch Display ( Displays Battery, Voltage, Current & Status )

SKU: TD

Prix habituel: £200.00
Prix habituel
Prix de vente: £200.00
Prix unitaire: par

Variantes de produit

Touch Display ( Displays Battery, Voltage, Current & Status )

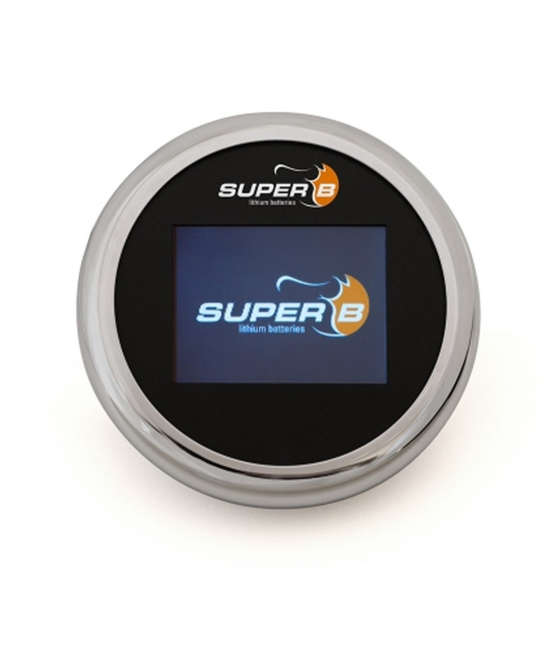

The Super B touch display is a smart battery meter that can measure and display the voltage, current, state of charge and time to go of your lithium battery. This gives you 24/7 insight in the available capacity of the battery.The touch display is suitable for 12 volt systems of the Nomia and Epsilon and can be set up in 6 different languages: English, French, German, Dutch, Italian and Spanish.

PRODUCT SPECIFICATIONS

Weight

110 gr / 0.24 lbs

Supply voltage range

8 DC to 35 VDC

self-discharge

<3% per month

Supply current

80mA (max) / 6mA (SLEEP mode)

Front display

2,4-inch TFT color screen with 320x240 pixel resolution

Operating temperature

-10°C to 50°C / 14℉ to 122℉

Storage temperature

-20°C to 70°C / -4℉ to 158℉

Fixing

4 screws

Network protocol & connector

CANBus / RJ11

Dimensions

Front Ø 93mm / Body Ø 72mm / Depth 27mm

Available to download Here

Be In Charge - Software and App

Super B provides a Be In Charge Software tool which can be used to read out the internal BMS system. The software uses a CAN to USB converter to connect to the communication interface. The software is capable of reading out the actual status like battery / cell voltages and temperature but also statistical information. The Be In Charge software can also be used to update the installed firmware of the Li-ion battery. The Be In Charge software and hardware are not part of the Li-ion battery scope of delivery. Super B also provides a Be In Charge App for mobile devices such as Android and Apple . The app can be found in the Google play store or Apple app store.
