Aim GPS09 Pro Module
SKU: GPS-PRO-1
- Regular price
- €516,95 EUR
- Regular price
-
- Sale price
- €516,95 EUR
- Unit price
- per
Precision. Reliability. Guaranteed.

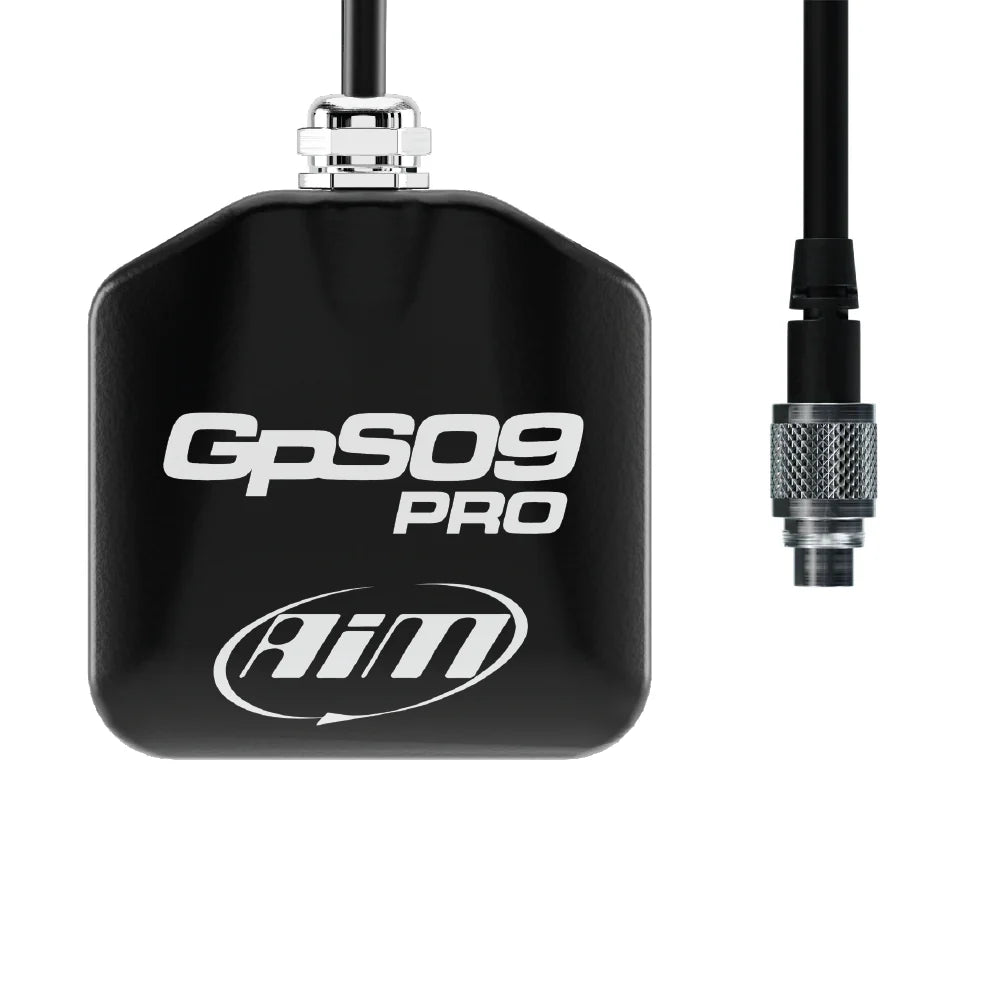

Aim GPS09 Pro Module
The AiM GPS technology represents a true revolution in data acquisition. With our GPS software, you can immediately sample and split times as well as speed, position and acceleration, all required to improve your driving performance and technique.
This Pro verision of GPS09 features a 6 axis 100Hz inertial platform
The GPS Pro Module is connected via a CAN cable which makes it quick and simple to install.
GPS09 Pro Benefits
The GPS09 Module guarantees precision and reliability, working with almost twenty satellites to improve its performance.
With an average of less than one-metre tolerance, absolute precision will determine vehicle position.
The satellite signal is rapidly locked moments after switch on and no risk of missing signals anymore due to noise or interferences on the system.
The satellite signal is rapidly locked moments after switch on and no risk of missing signals anymore due to noise or interferences on the system.
On the Track
The GPS Module is fast in satellite signal acquisition and reliable in adverse situations. GPS Manager allows you to set track start/finish lines and splits and to download a comprehensive track database. With the GPS Module you get important information, i.e. chassis analysis, track position, etc as well as position, speed, cornering in-line and lateral G and automatic lap times.
Choice of options

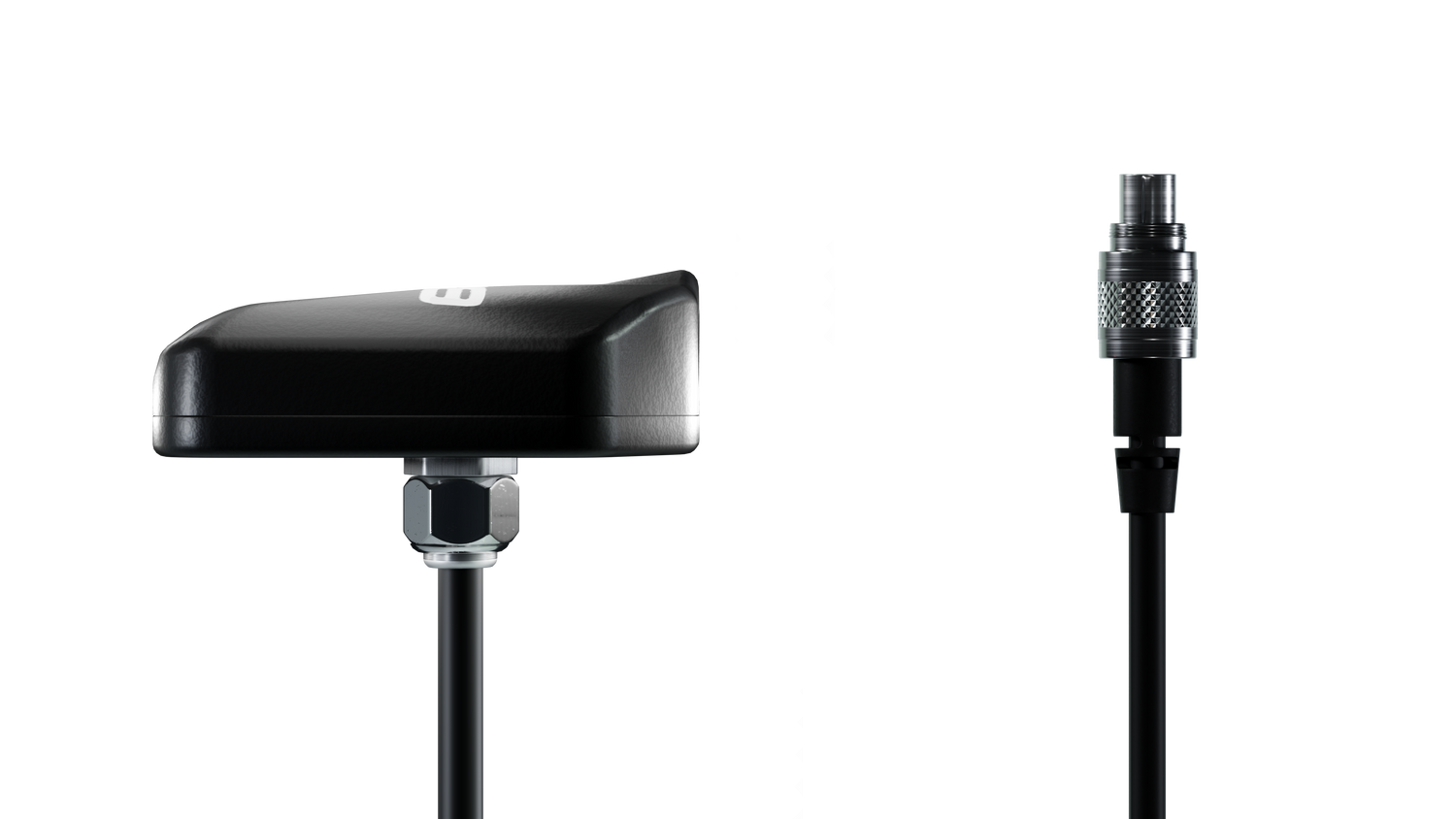

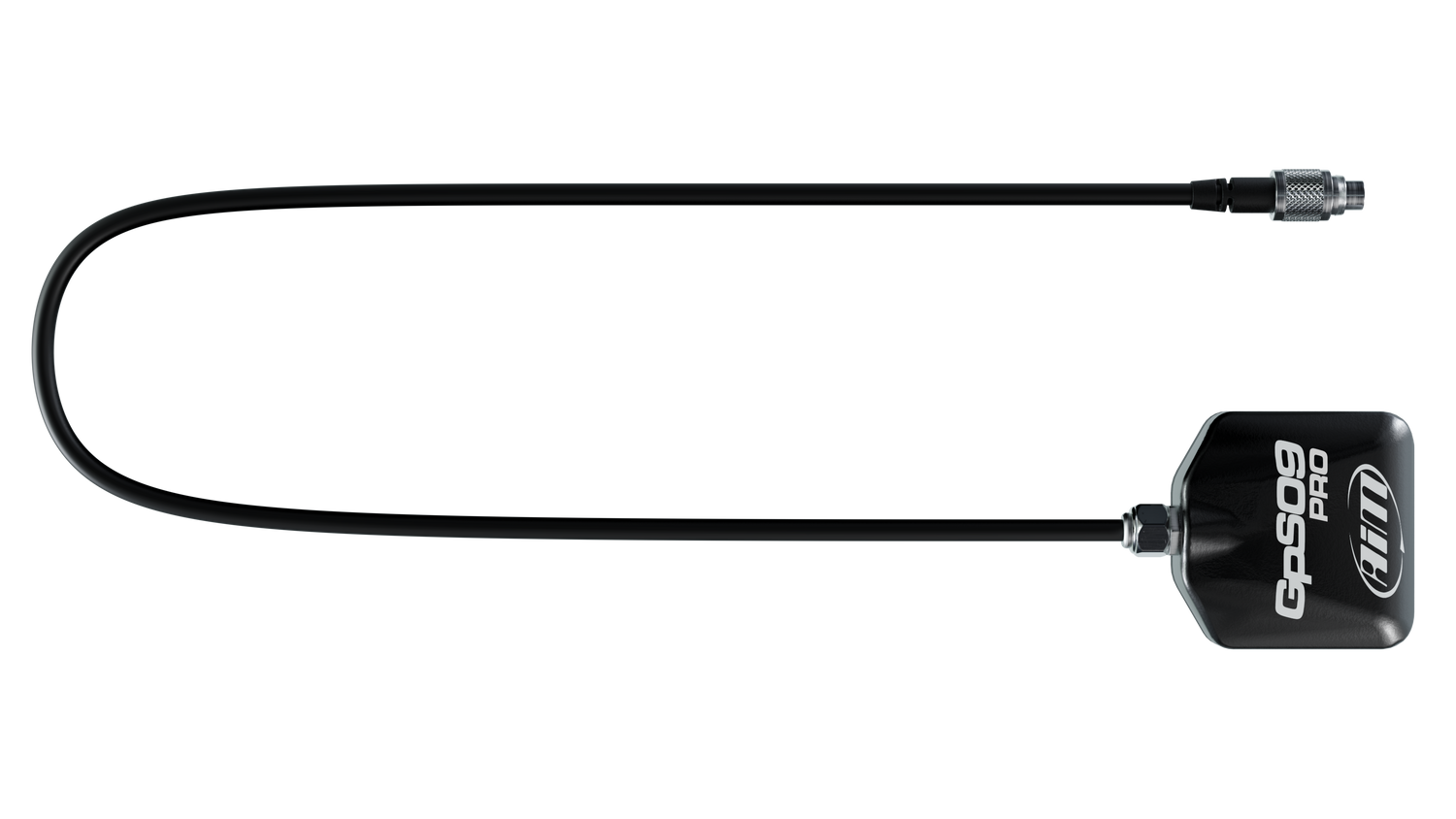

The GPS09 Module is available in 0.5m, 1.3m, 2m or 4m cable and 2m or 4m in a roof version (with cable entry from underneath) specifically designed for easy installation on covered cars.
IMU data available through CAN connection at 100 Hz:
- Acceleration X
- Acceleration Y
- Acceleration Z
- Pirch rate
- Yaw rate
- Roll rate
Configure & Analyse with Race Studio 3
Configuration
With Race Studio 3 you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam HD cameras.
Analysis
With Race Studio 3 you can also analyse all data recorded and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing objective support to avoid mistakes and improve performances.
 |
 |
 |
AiM GPS09 Module
- Dimenstions: 64.8 x 53.2 x 19.7mm
- Weight: 60.5g
- Inertial platform : 100 Hz internal 3 axis ±5G accelerometer + 3 axis gyro + 3 axis magnetometer
AiM GPS09 Pro Module
- GPS09 Pro Module
Description
Precision. Reliability. Guaranteed.
Aim GPS09 Pro Module
The AiM GPS technology represents a true revolution in data acquisition. With our GPS software, you can immediately sample and split times as well as speed, position and acceleration, all required to improve your driving performance and technique.
This Pro verision of GPS09 features a 6 axis 100Hz inertial platform
The GPS Pro Module is connected via a CAN cable which makes it quick and simple to install.
GPS09 Pro Benefits
The GPS09 Module guarantees precision and reliability, working with almost twenty satellites to improve its performance.
With an average of less than one-metre tolerance, absolute precision will determine vehicle position.
The satellite signal is rapidly locked moments after switch on and no risk of missing signals anymore due to noise or interferences on the system.
The satellite signal is rapidly locked moments after switch on and no risk of missing signals anymore due to noise or interferences on the system.
On the Track
The GPS Module is fast in satellite signal acquisition and reliable in adverse situations. GPS Manager allows you to set track start/finish lines and splits and to download a comprehensive track database. With the GPS Module you get important information, i.e. chassis analysis, track position, etc as well as position, speed, cornering in-line and lateral G and automatic lap times.
Choice of options
The GPS09 Module is available in 0.5m, 1.3m, 2m or 4m cable and 2m or 4m in a roof version (with cable entry from underneath) specifically designed for easy installation on covered cars.
IMU data available through CAN connection at 100 Hz:
- Acceleration X
- Acceleration Y
- Acceleration Z
- Pirch rate
- Yaw rate
- Roll rate
Configure & Analyse with Race Studio 3
Configuration
With Race Studio 3 you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam HD cameras.
Analysis
With Race Studio 3 you can also analyse all data recorded and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing objective support to avoid mistakes and improve performances.
| |
|
|
Technical
AiM GPS09 Module
- Dimenstions: 64.8 x 53.2 x 19.7mm
- Weight: 60.5g
- Inertial platform : 100 Hz internal 3 axis ±5G accelerometer + 3 axis gyro + 3 axis magnetometer
What's in The Box
AiM GPS09 Pro Module
- GPS09 Pro Module
