PRE ORDER ONLY - STOCK DUE: TBA

Karting's Favourite System Just Got Better

The AiM MyChron 6 2T is our latest GPS lap timer for karting, combining 30 years of experience with cutting-edge technology. With 25 Hz GPS and dual temperature inputs, MyChron 6 2T lap timer offers precise lap timing and advanced data analysis for both amateur and professional racers.

Key Features

PRE ORDER ONLY - STOCK DUE: TBA

Why Choose The MyChron 6 GPS Lap Timer x2 Water Temperature Sensor Inputs?

The MyChron 6 2T lap timer is the newest data acquisition device in our MyChron series. Expanding on the features of its predecessor, the MyChron 6 Lap Timer x2 Water Temperature Sensor Inputs is sure to revolutionise how drivers and teams monitor and analyse performance on the track.

Due to its highly accurate 25Hz GPS tracking, larger screen to display delta times, comprehensive data logging capabilities, user-friendly interface and ability to monitor water temperature, the MyChron 6 2T lap timer provides detailed performance analysis for both amateur and professional racers.

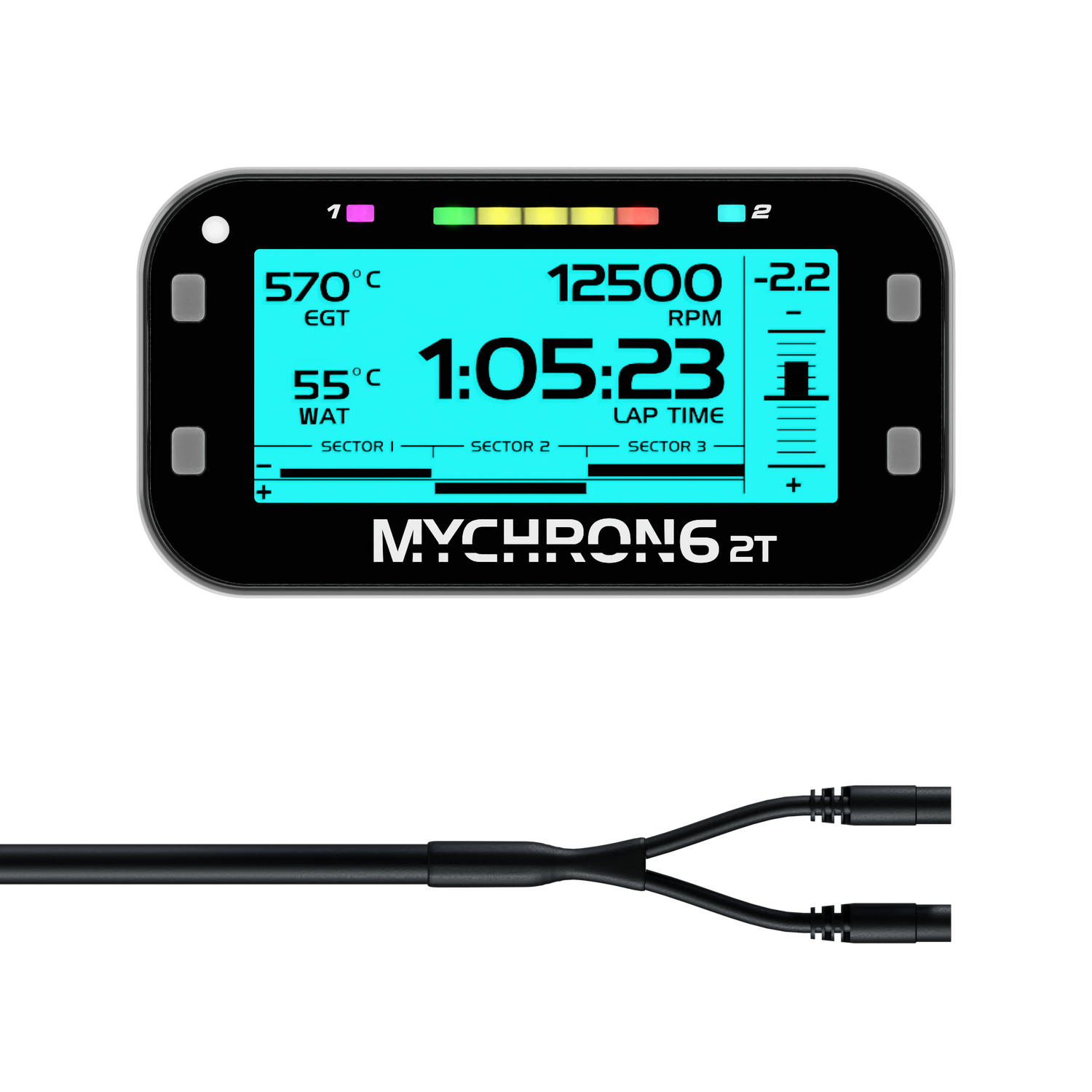

Note: With the MyChron 6 2T lap timer & Water Temperature Sensor, there are 2 temperature sensor inputs which can measure water temperature. The optional second temperature sensor is connected directly to the dash using the supplied dual/splitter patch lead. This patch lead is suitable for fitting another water temperature sensor. For other sensor configurations, you will need to purchase an alternative patch lead. If you require further sensors, these can be added using our MyChron Expansion Module.

Accurate Lap Times & Data Analysis

Using the integrated 25 Hz GPS chipset, MyChron 6 2T lap timer delivers extremely accurate lap times and position data. It allows you to analyse racing lines, cornering speeds and braking points through the free Race Studio 3 software. The device is also ready for future mobile app integration with iPhone and Android.

Data transfer is seamless via built-in Wi-Fi or the USB-C connection, making it quick and easy to review and manage your data after every session.

Advanced Display & LED System

The wide pixel display ensures excellent readability, even in changing light conditions, with adjustable RGB backlight options. This larger display ensures that drivers can clearly monitor their best vs their current sector time to make real time adjustments to improve their delta time.

With the MyChron 6 2T Lap Timer x2 Water Temperature Sensor Inputs, the 5 RGB shift lights can be customised to show delta lap times or act as a traditional shift indicator. The 2 RGB alarm LEDs can also provide real time engine monitoring of 2 vehicle temperatures simultaneously to ensure the kart is operating within optimal parameters, preventing overheating and potential damage. With the MyChron 6 2T, everything is configurable to suit your needs.

Rechargeable Lithium Battery

The MyChron 6 2T lap timer is powered by a lithium battery, with a battery life of up to 20 hours of use. The device can also be recharged using a USB Type C cable which is included in the box.

Analyse Your Kart's Performance

The integrated 6-axis inertial platform provides detailed insights into your kart's dynamics, including steering position analysis for understanding oversteer and understeer. This feature helps fine-tune your kart setup for optimal performance on the track.

Analyse with Race Studio 3

With Race Studio 3, you can analyse all data recorded by the MyChron 6 2T lap timer and download it to your PC: graphs, histograms and tables will help you study your performance, providing objective support to avoid mistakes and improve performance.

Compatible Expansions

The MyChron 6 2T lap timer is compatible with a variety of expansions and modules to enhance performance and expand on the data collection. Compatible expansions include:

• SmartyCam 3 Cameras
• IR Temperature Controller
• MyChron Expansion

• Lambda (LCU-One and LCU-One S)

MyChron 6 2T

• Display: Graphical
• Display resolution: 320x136 pixels
• Backlight: 8 configurable RGB LEDs
• Integrated track database: Yes
• Wi-Fi connection: Yes
• Bluetooth connection: Yes
• GPS: 25HZ
• External power: 29÷15 V
• CAN connections: 2
• Connectors: 21 Binder 712 fem 3 pins connector,
  1 Binder 712 fem 8 pins connector,
  1 Binder 712 fem 5 pins connector
• USB connection: For data download, mass storage support and battery charge
• Temperature inputs: 2
• Inertial platform: 6 axis, frequency 50 Hz
• Digital inputs: Optical lap signal Magnetic lap signal
• Digital outputs: 1, programmable high/low activation
• External modules: MyChron Expansions, IR Temerature Controller, SmartyCam 3 Series, Lambda (LCU-One and LCU1S)
• Memory: 4GB
• Internal battery type: Rechargeable Lithium
• Battery Life: 20 h approx.
• Body: PA6 GS30%
• Dimensions: 150.0 x 79.0 x 36.6 mm
• Weight: 370g
• Waterproof: IP67

MyChron 6 2T

• MyChron 6 2T lap timer
• RPM sensor
• Temperature sensor & patch cable as chosen from the drop-down menu

• USB-C charger
